InfiRay P2 Pro Smartphone Thermal Camera for Android/IOS with 256×192 Infrared Resolution, 25Hz Frame Rate, 600°C High Temperature Measurement and 9g Ultra-Compact Design
0
days
00
hr
00
min
00
sc
Original price was: $779.99.$469.99Current price is: $469.99.
Why You’ll Love It?

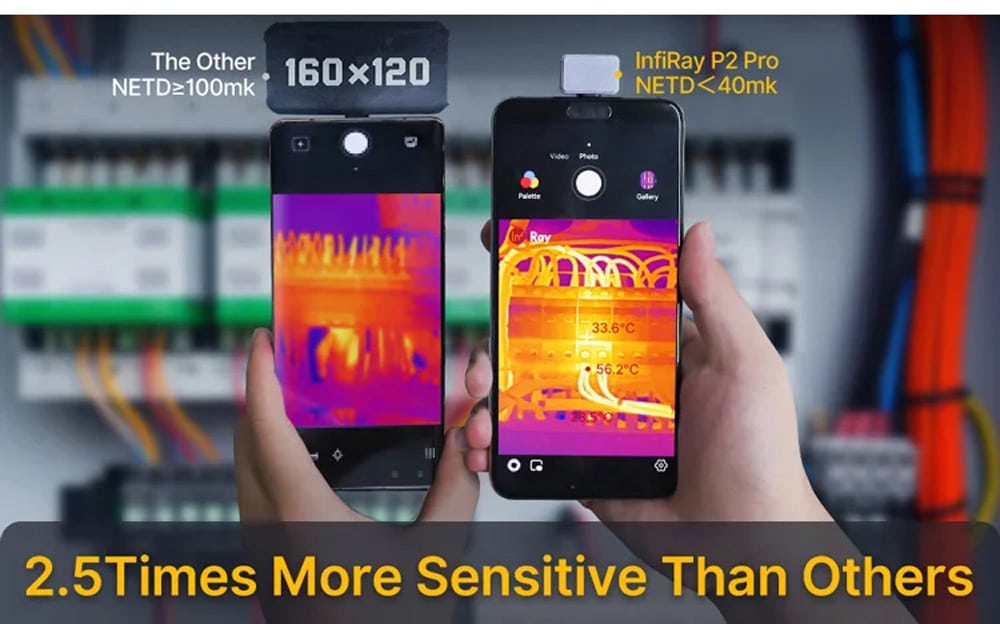

[256×192 High-Resolution Thermal Imaging with 40mK Sensitivity] The InfiRay P2 Pro thermal camera features a 256×192 infrared resolution sensor, 12μm pixel pitch, and ≤40mK NETD sensitivity, delivering detailed thermal images and detecting even subtle temperature differences with high precision.
[Ultra-Compact 9g Smartphone Thermal Camera] Measuring only 27×18×9.8mm and weighing just 9g, the P2 Pro is one of the smallest thermal cameras available. Connect it to an Android smartphone via USB Type-C for convenient portable thermal inspection anytime.
[Professional Temperature Measurement up to 600°C] Supporting a wide temperature range from -20°C to 600°C with ±2°C accuracy, the P2 Pro is ideal for PCB inspection, electrical troubleshooting, equipment maintenance, HVAC checks, and DIY diagnostics.
[Advanced Temperature Analysis & AI-Powered Processing] Powered by a self-developed ASIC chip, the P2 Pro supports point, line, and area temperature measurement, secondary image analysis, emissivity adjustment, distance correction, and environmental temperature compensation for more accurate results.
[Flexible Thermal Imaging with Wide FOV & Multiple Palettes] Featuring a 56°×42.2° wide field of view, 25Hz frame rate, and multiple color palettes, the P2 Pro helps users easily identify heat patterns and analyze thermal details in different environments.
Freeshipping On All Orders
We provide worldwide freeshipping for every order,every day,no moq required.
No import fees or extra delivery charges worldwide
Official Authorized Distributor
RUGGEDZONE.COM is an authorized distributor on all brands we sell. As an authorized distributor we have extensive knowledge and insight about the products and can provide you with the necessary education for using the products. Also as an authorized dealer this will give you a peace of mind knowing that you have a full warranty on all the products that you buy from us.
Two Years Warranty
We double all 2-year manufacturer warranty’s and take care of everything for you. No waiting on hold with the manufacturer.
2-year warranty and 100% authentic products
Free returns within 30 days of purchase
We hope you'll love your products from the RUGGEDZONE.COM Store, but if something isn't quite right, you can send it back with our flexible 30-day returns policy as long as it's in good working condition. Learn More >
Price adjustment within 30 days of payment
Items purchased from RUGGEDZONE.COM are eligible for our price adjustment policy. We will provide the price difference in the currency that the order was paid in if the selling price of the item purchased was reduced within 30 days of payment in the same country or region. The shipment of your order will not be affected by applying for a price adjustment before you receive your item(s).
30-day free returns and 30-day price adjustments
Safe Payment Options
Secure Privacy
Protecting your privacy is important to us! Please be assured that your information will be kept secured and uncompromised. We do not sell your personal information for money and will only use your information in accordance with our privacy and cookie policy to provide and improve our services to you. Learn More >
Secure payment options and purchase protection
You May Also Like
RuggedZone Buying Verdict
Score Breakdown
-
Thermal Detail & Sensitivity - 91%
91%
-
Temperature Measurement & Analysis - 94%
94%
-
Lens, Range & Inspection Utility - 88%
88%
-
App & Smartphone Workflow - 91%
91%
-
Portability & Field Readiness - 94%
94%
92%
Who Should Buy It?
Why it stands out: Its strongest combination is 256×192 thermal detail in a compact plug-in workflow.
Best for: field users comparing temperature differences without carrying a full handheld imager.
Not ideal for: users who never need temperature visualization.
Quick buying question: Is the InfiRay P2 Pro Smartphone Thermal Camera right for you? Do you need a compact thermal imager that works through your smartphone? Compare smartphone thermal cameras.
Evaluated by RuggedZone’s product experts using brand-provided information, product-feature analysis and publicly available market-use feedback.
Pros
- InfiRay P2 Pro Smartphone Thermal Camera delivers 256×192 thermal detail for locating hot spots, heat loss and uneven temperature patterns
- A practical benefit of InfiRay P2 Pro Smartphone Thermal Camera: A 25Hz thermal refresh supports smoother scanning across moving scenes
- For day-to-day field use, InfiRay P2 Pro Smartphone Thermal Camera adds this advantage: 40mK sensitivity helps reveal small temperature differences
- One of InfiRay P2 Pro Smartphone Thermal Camera’s useful strengths is clear here: Measurement support up to 600°C expands its use around hotter equipment
- In active work settings, InfiRay P2 Pro Smartphone Thermal Camera benefits from this feature: The phone-based workflow keeps thermal capture, notes and sharing together in one mobile interface
Cons
- One minor usage note for InfiRay P2 Pro Smartphone Thermal Camera: A brief pause produces a steadier view of very small temperature differences
- Worth knowing before first use of InfiRay P2 Pro Smartphone Thermal Camera: Protective storage helps keep the compact lens ready between jobs
- A little preparation helps with InfiRay P2 Pro Smartphone Thermal Camera: Reflective surfaces may benefit from a second viewing angle
Version 1.0.0
Model InfiRay P2 Pro
Product Type Mobile Infrared Thermal Imaging Camera
Color Silver
Weight 9g
Dimension 27 × 18 × 9.8mm
Thermal Resolution 256 × 192 pixels
Pixel Pitch 12μm
Thermal Sensitivity (NETD) ≤40mK @25°C, F#1.0
Operating Band 8μm–14μm
Frame Rate 25Hz
Processor Self-developed ASIC Chip
Power Consumption 350mW
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to 85°C
Focal Length 3.2mm
Aperture F1.1
Field of View (FOV) 56.0° × 42.2°
Lens Type Athermalized Prime Lens
Macro Lens Supported
Focus Mode Fixed Focus
Temperature Measurement Range -20°C to 600°C
Temperature Accuracy ±2°C / ±2% of Reading (Greater Value Applies)

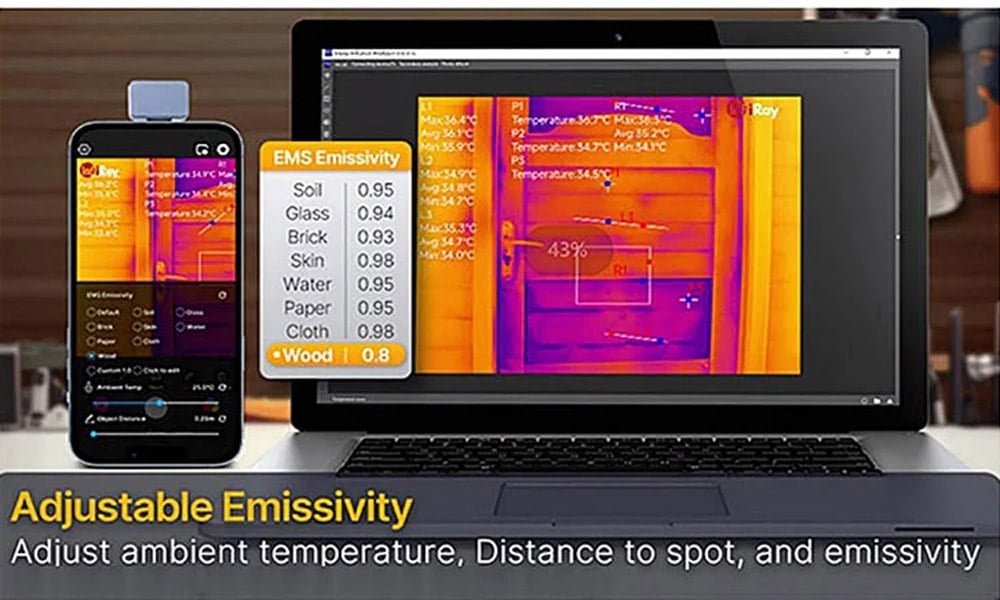

Temperature Correction Emissivity, Distance, Environmental Temperature Correction
Measurement Methods Point / Line / Plane Temperature Measurement

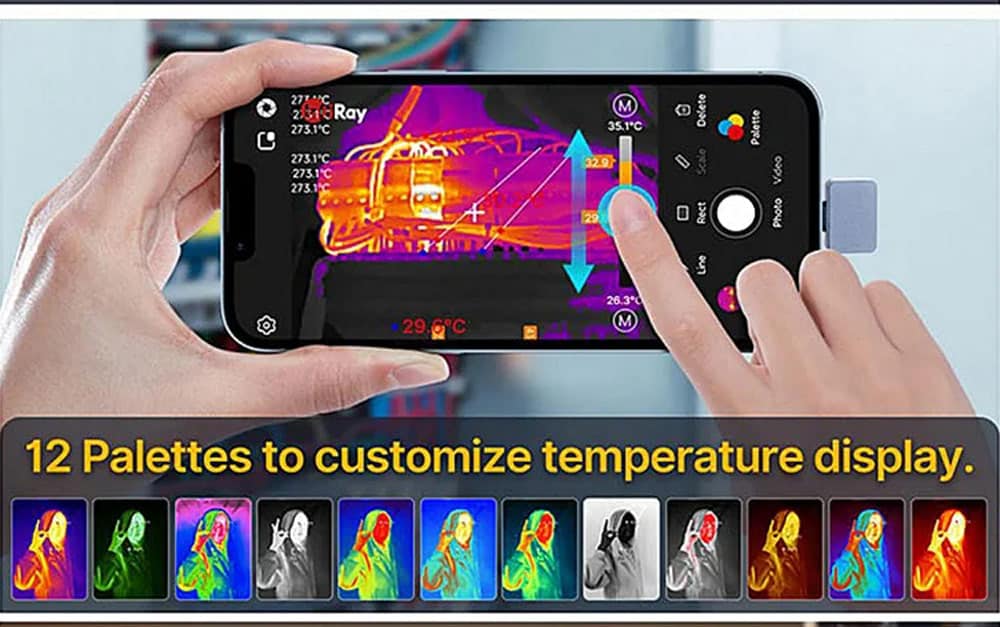

Color Palettes White Hot, Black Hot + 6 Additional Palettes
Data Analysis Secondary Temperature Analysis and Image Processing
Image Sharing Instant Picture Sharing
Recording Thermal Image Capture and Video Recording
Interface USB Type-C
Q & A
Ask a question
InfiRay P2 Pro Smartphone Thermal Camera for Android/IOS with 256×192 Infrared Resolution, 25Hz Frame Rate, 600°C High Temperature Measurement and 9g Ultra-Compact Design
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
| Detail Specs | |
|---|---|
| MODEL: | InfiRay P2 Pro |
| Product Type | Mobile Infrared Thermal Imaging Camera |
| Color | Silver |
| Weight | 9g |
| Dimension | 27 × 18 × 9.8mm |
| Thermal Resolution | 256 × 192 pixels |
| Pixel Pitch | 12μm |
| Thermal Sensitivity (NETD) | ≤40mK @25°C, F#1.0 |
| Operating Band | 8μm–14μm |
| Frame Rate | 25Hz |
| Processor | Self-developed ASIC Chip |
| Power Consumption | 350mW |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Focal Length | 3.2mm |
| Aperture | F1.1 |
| Field of View (FOV) | 56.0° × 42.2° |
| Lens Type | Athermalized Prime Lens |
| Macro Lens | Supported |
| Focus Mode | Fixed Focus |
| Temperature Measurement Range | -20°C to 600°C |
| Temperature Accuracy | ±2°C / ±2% of Reading (Greater Value Applies) |
| Temperature Correction | Emissivity, Distance, Environmental Temperature Correction |
| Measurement Methods | Point / Line / Plane Temperature Measurement |
| Color Palettes | White Hot, Black Hot + 6 Additional Palettes |
| Data Analysis | Secondary Temperature Analysis and Image Processing |
| Image Sharing | Instant Picture Sharing |
| Recording | Thermal Image Capture and Video Recording |
| Interface | USB Type-C |
| Compatible Devices | Android Smartphones and Tablets |
| Factory Warranty | 2 Years |
