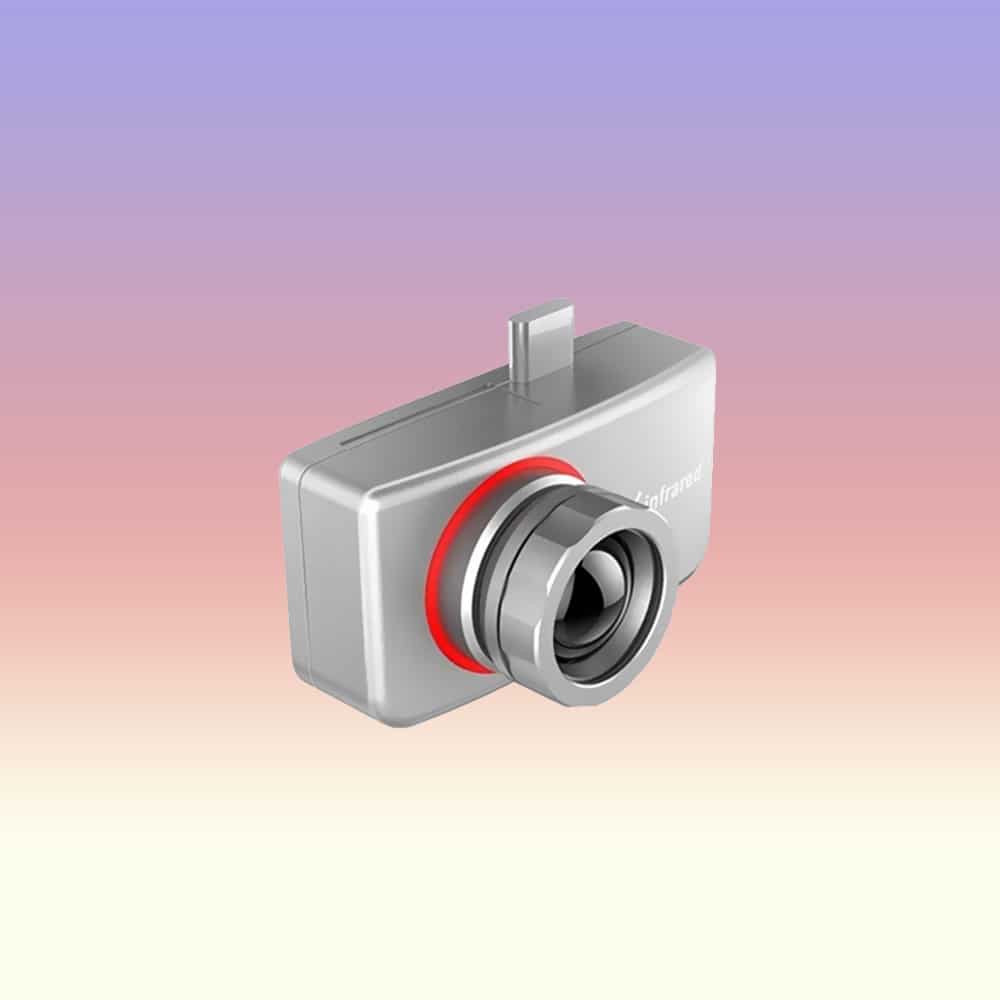

InfiRay T3S Smartphone Thermal Camera 384×288 Infrared Imager with 13mm Macro Lens, 25Hz Frame Rate and Temperature Measurement for Android
0
days
00
hr
00
min
00
sc
Original price was: $1,499.99.$899.99Current price is: $899.99.
Why You’ll Love It?

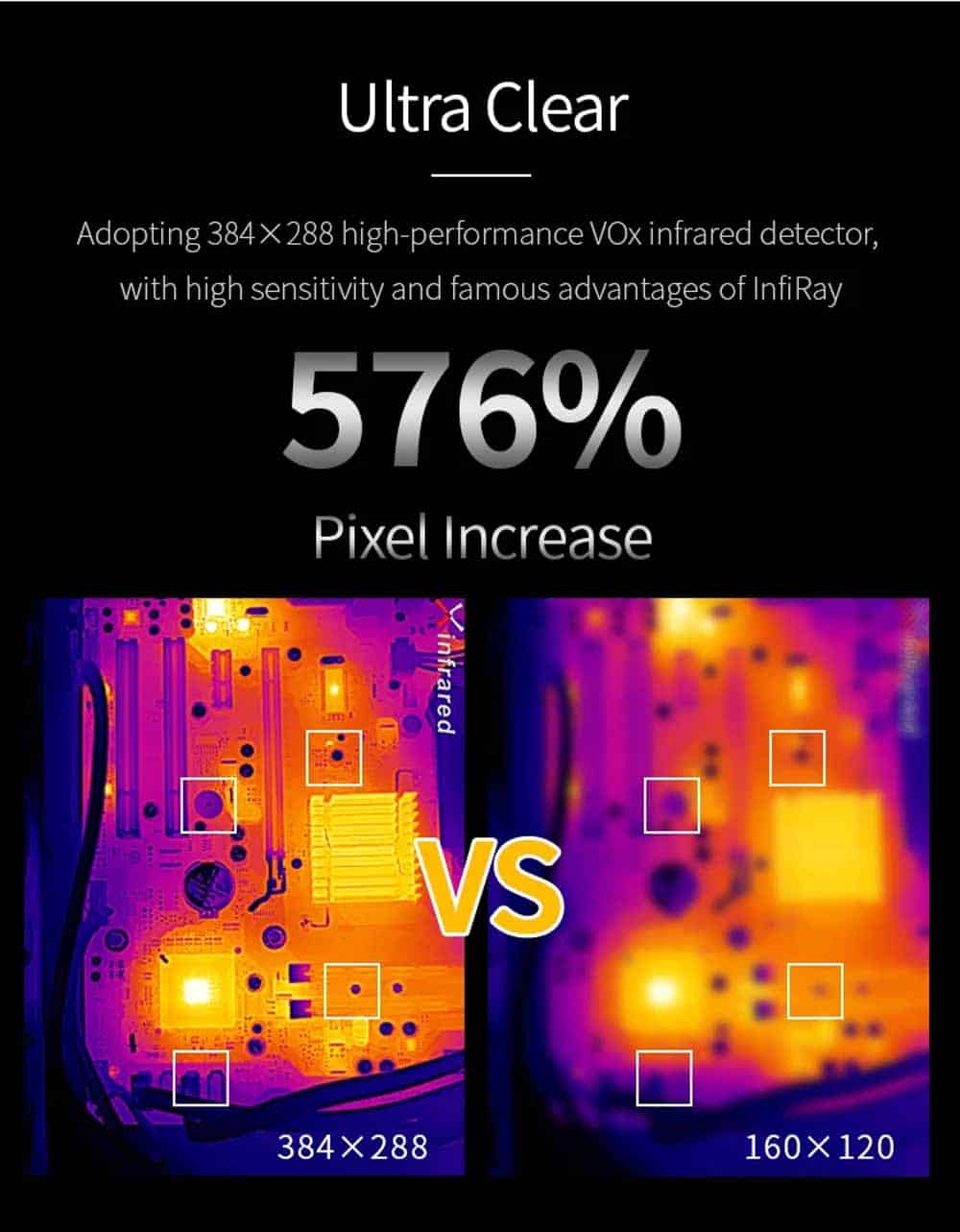

[384×288 High-Resolution Thermal Imaging with 25Hz Refresh Rate] InfiRay T3S is equipped with a 384×288 infrared detector and 17μm pixel pitch, delivering detailed thermal images with smooth 25Hz frame rates for accurate heat detection and analysis.

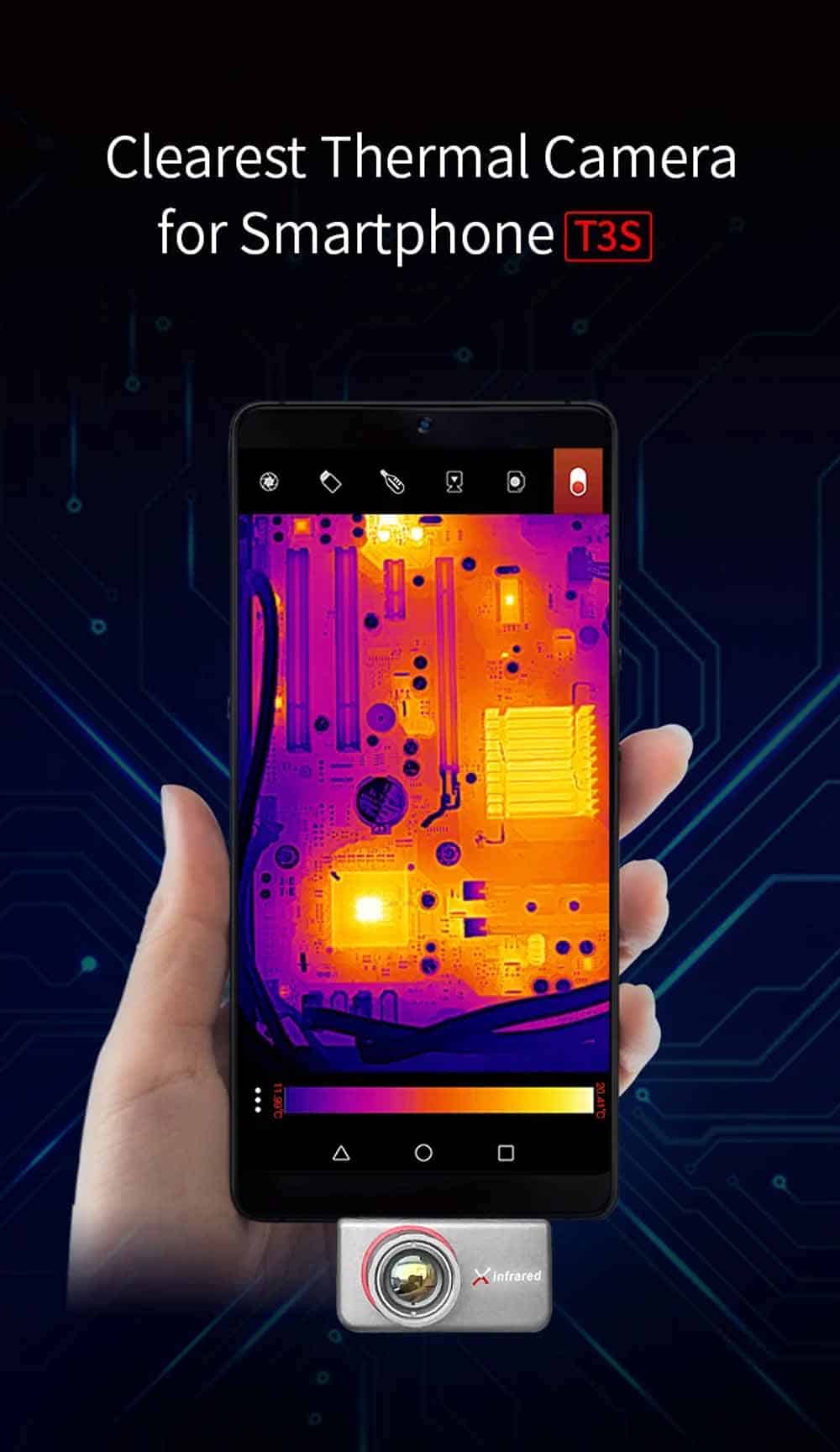

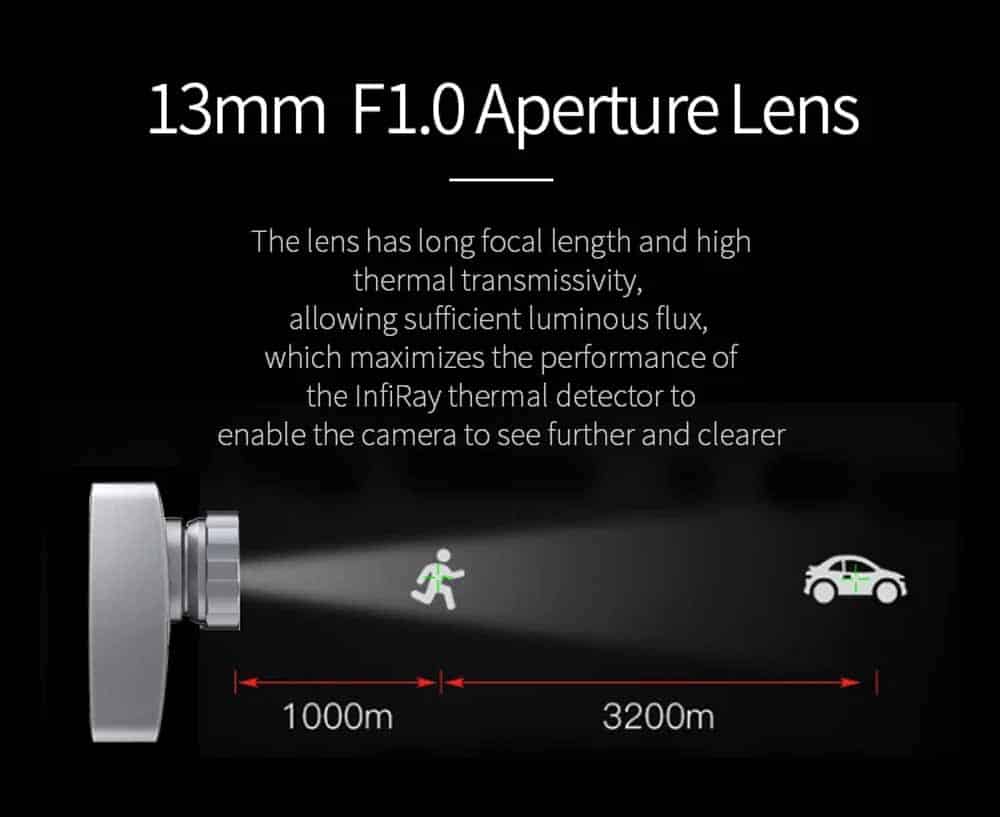

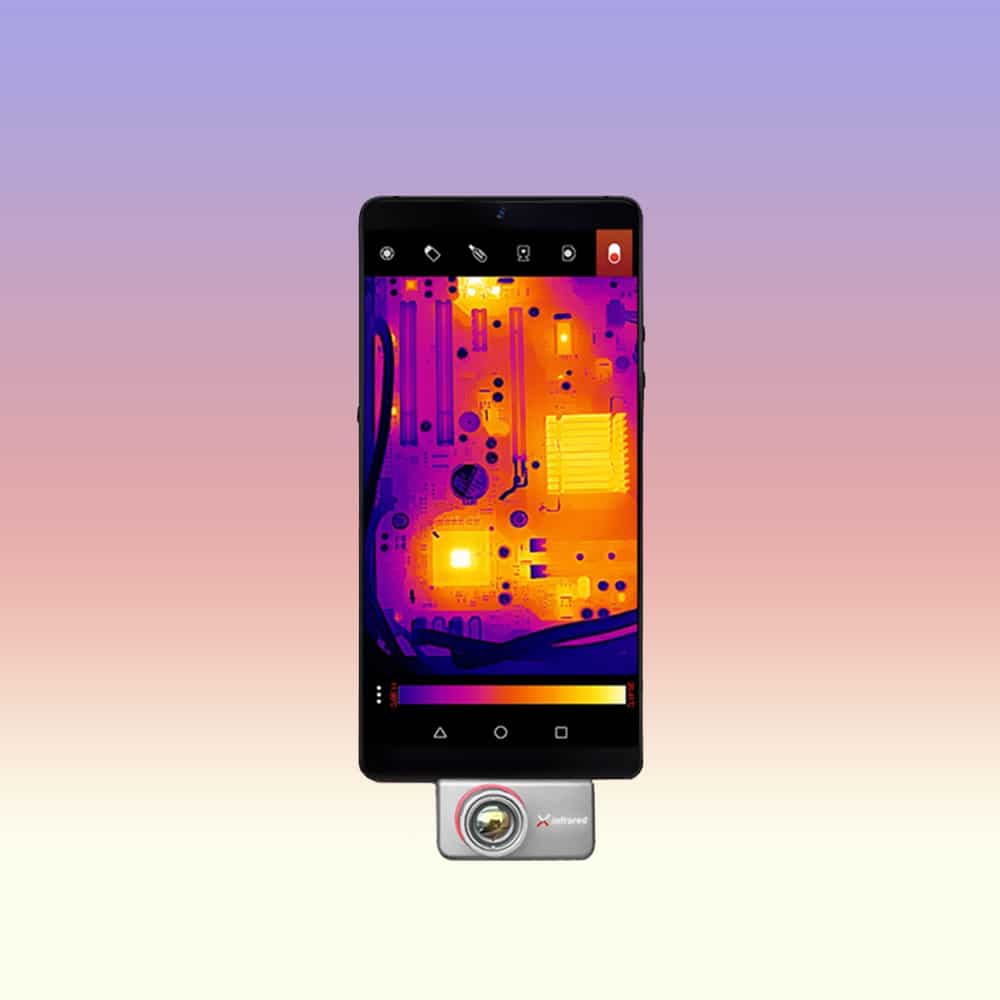

[13mm Macro Lens for Close-Up Inspection] Featuring a 13mm adjustable manual focus lens, T3S provides clear close-range thermal imaging, making it ideal for inspecting circuit boards, electronic components, mechanical parts, and other small heat sources.
[Accurate Temperature Measurement up to 120°C] Supporting a temperature measurement range of -20°C to 120°C with ±3°C or ±3% accuracy, T3S helps identify hidden heat issues in electrical systems, HVAC equipment, water pipes, and industrial components.

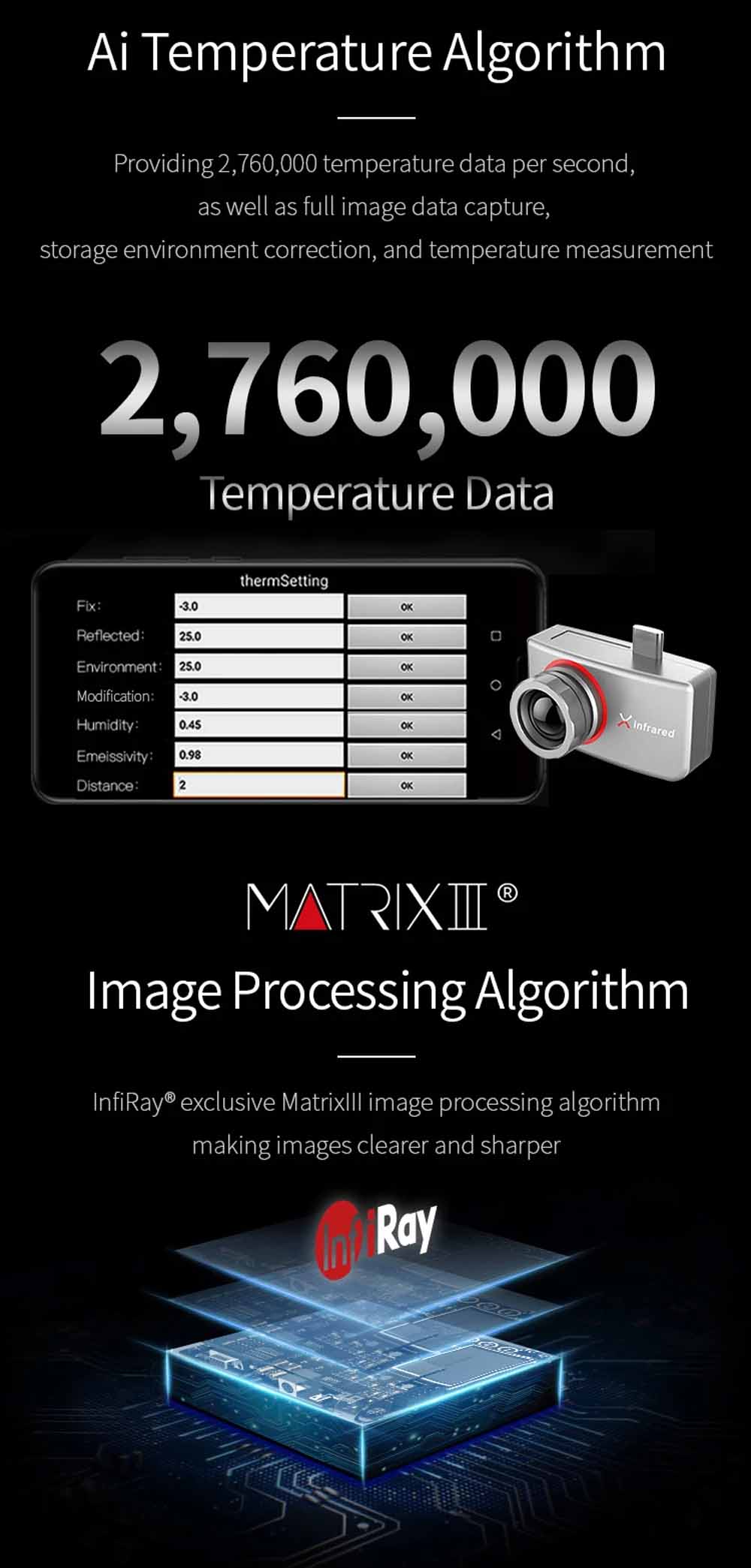

[Professional Thermal Analysis Features] T3S supports maximum, minimum, and center temperature display, as well as point, line, and area temperature measurement with secondary image analysis for more efficient troubleshooting.

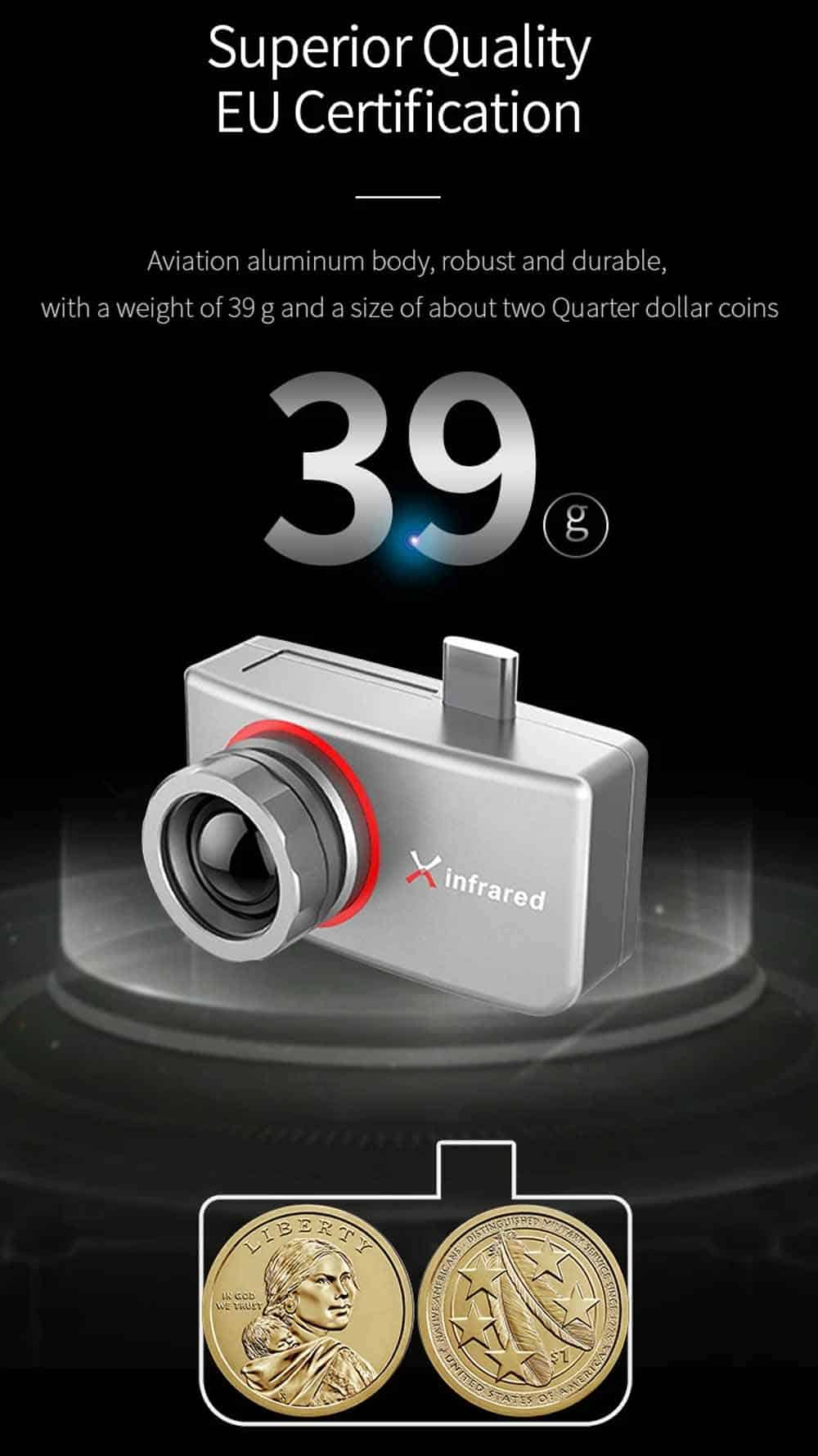

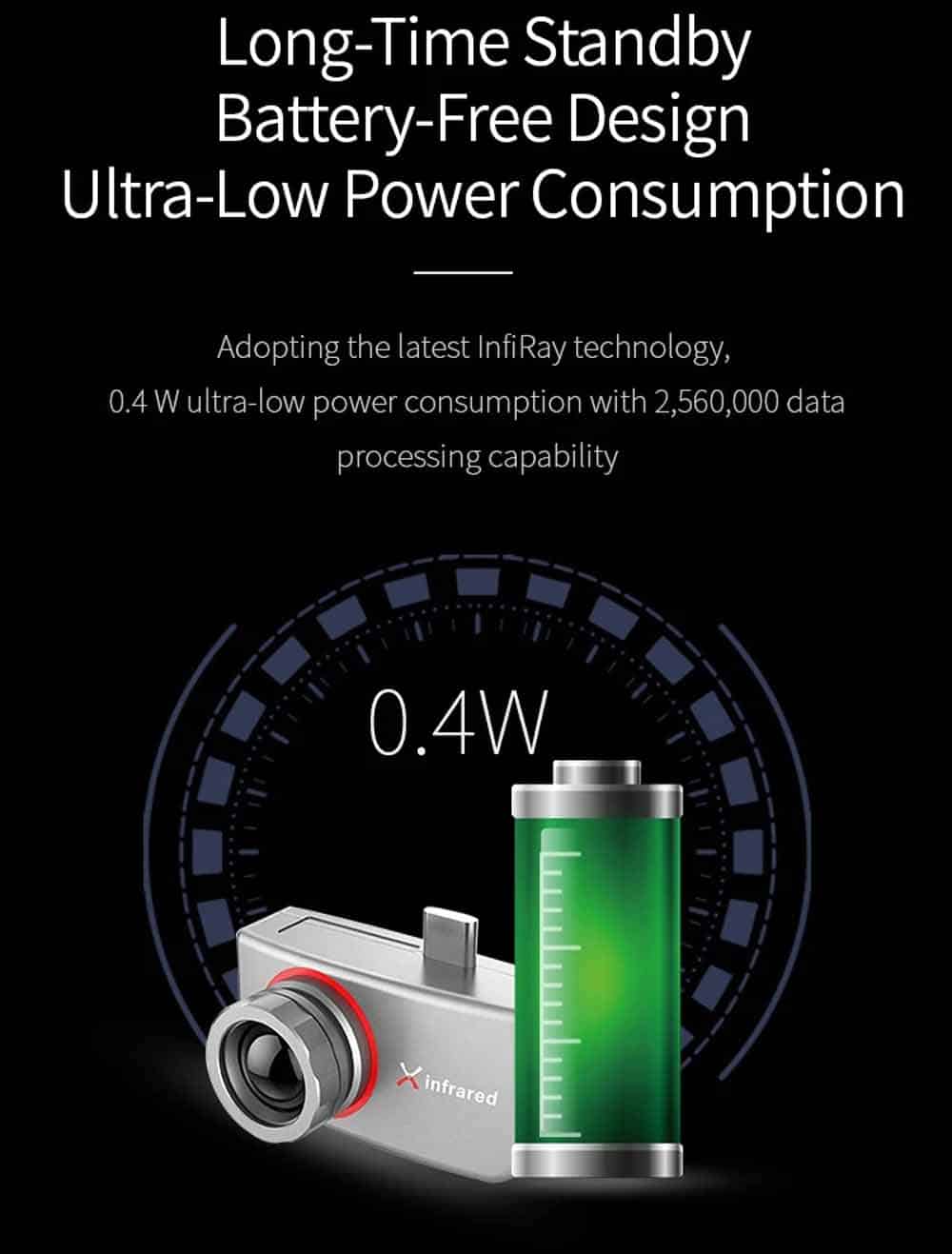

[Compact Smartphone Thermal Camera with Low Power Consumption] Weighing less than 40g and consuming under 500mW, T3S connects to Android smartphones and provides a lightweight, portable thermal inspection solution for professionals and DIY users.
Freeshipping On All Orders
We provide worldwide freeshipping for every order,every day,no moq required.
No import charges for all items and no extra charges upon delivery
Official Authorized Distributor
RUGGEDZONE.COM is an authorized distributor on all brands we sell. As an authorized distributor we have extensive knowledge and insight about the products and can provide you with the necessary education for using the products. Also as an authorized dealer this will give you a peace of mind knowing that you have a full warranty on all the products that you buy from us.
Two Years Warranty
We double all 2-year manufacturer warranty’s and take care of everything for you. No waiting on hold with the manufacturer.
2 years warranty, 100% authentic guaranteed
Free returns within 30 days of purchase
We hope you'll love your products from the RUGGEDZONE.COM Store, but if something isn't quite right, you can send it back with our flexible 30-day returns policy as long as it's in good working condition. Learn More >
Price adjustment within 30 days of payment
Items purchased from RUGGEDZONE.COM are eligible for our price adjustment policy. We will provide the price difference in the currency that the order was paid in if the selling price of the item purchased was reduced within 30 days of payment in the same country or region. The shipment of your order will not be affected by applying for a price adjustment before you receive your item(s).
30-day Easy Free Returns Policy, 30-Day Price Adjustments
Safe Payment Options
Secure Privacy
Protecting your privacy is important to us! Please be assured that your information will be kept secured and uncompromised. We do not sell your personal information for money and will only use your information in accordance with our privacy and cookie policy to provide and improve our services to you. Learn More >
Safe Payment Options,Purchase protection
You May Also Like
Model InfiRay T3S
Product Type Mobile Infrared Thermal Imaging Camera
Color Silver
Compatible Device Android Smartphones
Supported System Android 6.0 and Above
Thermal Resolution 384 × 288 pixels
Pixel Pitch 17μm
Frame Rate 25Hz
NETD ≤60mK @25℃, F#1.0
MRTD ≤500mK @25℃, F#1.0
Lens Type 13mm Adjustable Focus Lens
Focus Mode Manual Focus
Field of View (FOV) 28.2° × 21.3°
Temperature Measurement Range -20℃ to 120℃
Temperature Accuracy ±3℃ or ±3% of Measuring Range (Greater Value Applies)
Operating Temperature -10℃ to +50℃
Power Consumption <500mW
Weight <40g
Dimension 49.5 × 26 × 27.5mm
Image Enhancement Digital Detail Enhancement (DDE)
Image Correction Manual Correction
Color Palettes White Hot, Black Hot, Multiple Palettes
Temperature Measurement Functions Max / Min / Center Temperature Display, Point / Line / Area Temperature Analysis
Measurement Statistics Temperature Data Analysis and Processing
Hot Spot Detection Supported
Video & Image Storage Photo and Video Recording

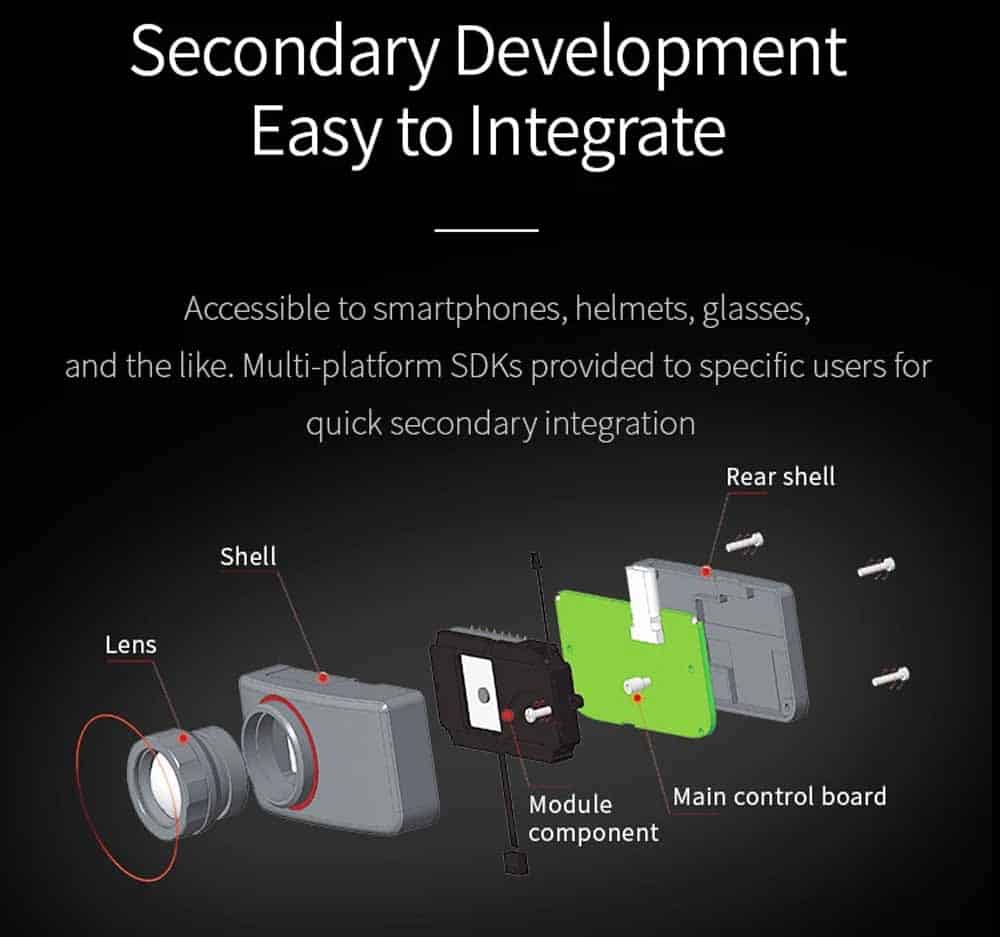

Secondary Development SDK Available
Applications Circuit Board Inspection, Electrical Inspection, HVAC Inspection, Water Leak Detection, Floor Heating Inspection, Mechanical Maintenance, Building Inspection
Product Type Mobile Infrared Thermal Imaging Camera
Color Silver
Compatible Device Android Smartphones
Supported System Android 6.0 and Above
Thermal Resolution 384 × 288 pixels
Pixel Pitch 17μm
Frame Rate 25Hz
NETD ≤60mK @25℃, F#1.0
MRTD ≤500mK @25℃, F#1.0
Lens Type 13mm Adjustable Focus Lens
Focus Mode Manual Focus
Field of View (FOV) 28.2° × 21.3°
Temperature Measurement Range -20℃ to 120℃
Temperature Accuracy ±3℃ or ±3% of Measuring Range (Greater Value Applies)
Operating Temperature -10℃ to +50℃
Power Consumption <500mW
Weight <40g
Dimension 49.5 × 26 × 27.5mm
Image Enhancement Digital Detail Enhancement (DDE)
Image Correction Manual Correction
Color Palettes White Hot, Black Hot, Multiple Palettes
Temperature Measurement Functions Max / Min / Center Temperature Display, Point / Line / Area Temperature Analysis
Measurement Statistics Temperature Data Analysis and Processing
Hot Spot Detection Supported
Video & Image Storage Photo and Video Recording
Secondary Development SDK Available
Applications Circuit Board Inspection, Electrical Inspection, HVAC Inspection, Water Leak Detection, Floor Heating Inspection, Mechanical Maintenance, Building Inspection
Q & A
Ask a question
InfiRay T3S Smartphone Thermal Camera 384×288 Infrared Imager with 13mm Macro Lens, 25Hz Frame Rate and Temperature Measurement for Android
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
| Detail Specs | |
|---|---|
| MODEL: | InfiRay T3S |
| Product Type | Mobile Infrared Thermal Imaging Camera |
| Color | Silver |
| Compatible Device | Android Smartphones |
| Supported System | Android 6.0 and Above |
| Thermal Resolution | 384 × 288 pixels |
| Pixel Pitch | 17μm |
| Frame Rate | 25Hz |
| NETD | ≤60mK @25℃, F#1.0 |
| MRTD | ≤500mK @25℃, F#1.0 |
| Lens Type | 13mm Adjustable Focus Lens |
| Focus Mode | Manual Focus |
| Field of View (FOV) | 28.2° × 21.3° |
| Temperature Measurement Range | -20℃ to 120℃ |
| Temperature Accuracy | ±3℃ or ±3% of Measuring Range (Greater Value Applies) |
| Operating Temperature | -10℃ to +50℃ |
| Power Consumption | <500mW |
| Weight | <40g |
| Dimension | 49.5 × 26 × 27.5mm |
| Image Enhancement | Digital Detail Enhancement (DDE) |
| Image Correction | Manual Correction |
| Color Palettes | White Hot, Black Hot, Multiple Palettes |
| Temperature Measurement Functions | Max / Min / Center Temperature Display, Point / Line / Area Temperature Analysis |
| Measurement Statistics | Temperature Data Analysis and Processing |
| Hot Spot Detection | Supported |
| Video & Image Storage | Photo and Video Recording |
| Secondary Development | SDK Available |
| Applications | Circuit Board Inspection, Electrical Inspection, HVAC Inspection, Water Leak Detection, Floor Heating Inspection, Mechanical Maintenance, Building Inspection |
| Factory Warranty | 2 Years |
