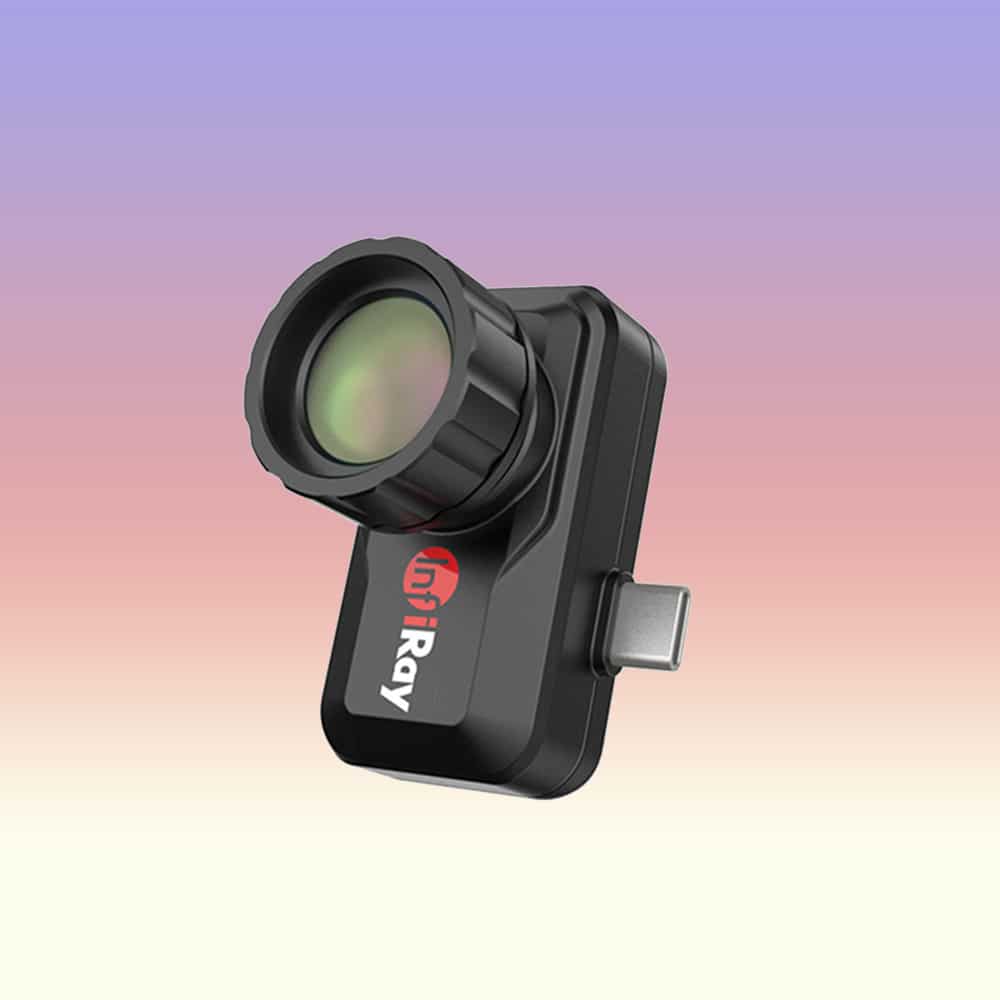

InfiRay T3 Smartphone Thermal Camera 384×288 Infrared Imager with 25Hz Frame Rate, 19mm Lens, 50mK Sensitivity and Hot Spot Tracking for Android
0
days
00
hr
00
min
00
sc
Original price was: $1,599.99.$989.99Current price is: $989.99.
Why You’ll Love It?

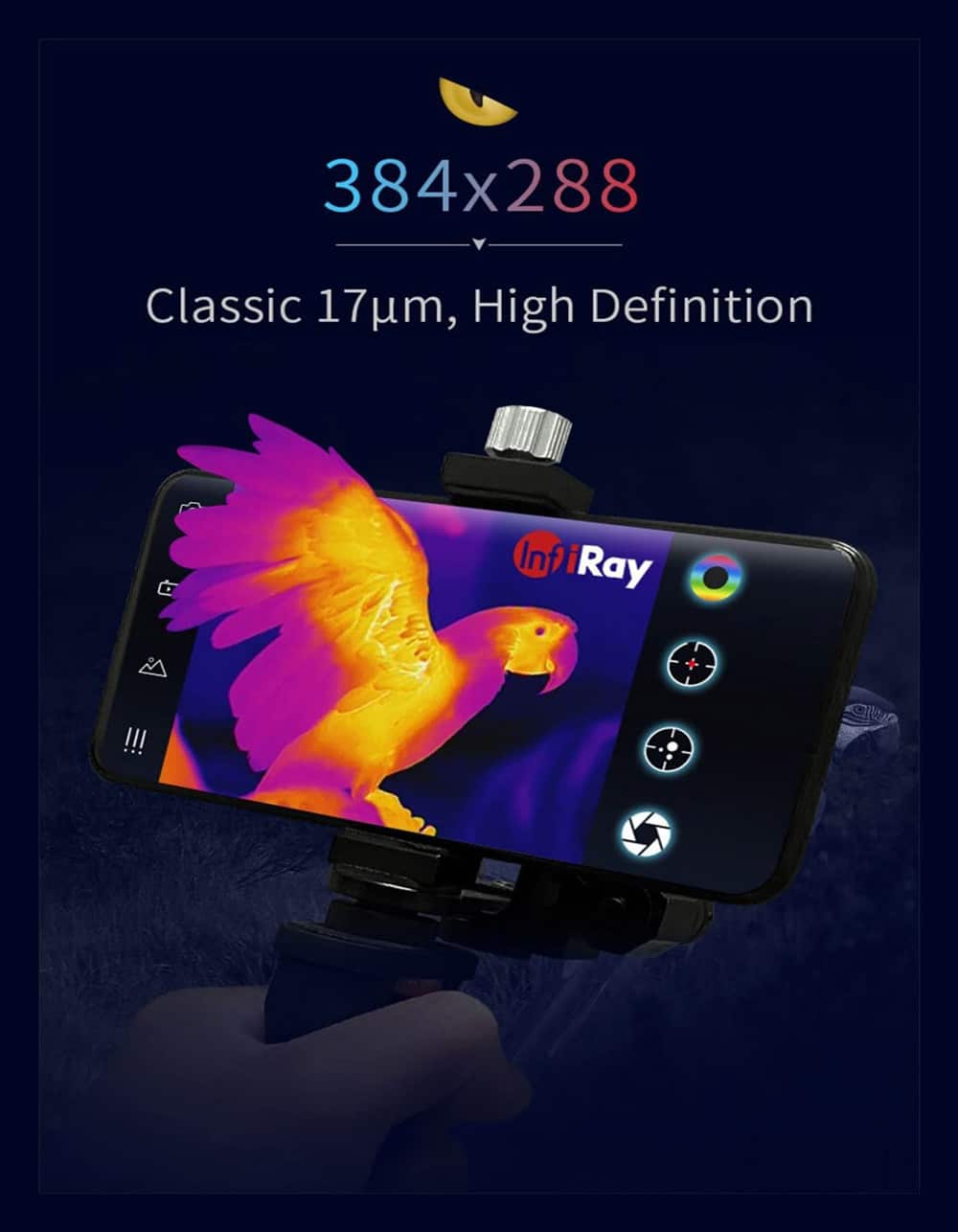

[384×288 High-Definition Thermal Imaging] InfiRay T3 features a 384×288 infrared resolution sensor with 17μm pixel pitch, delivering detailed thermal images with enhanced clarity for outdoor observation, inspection, and heat detection applications.

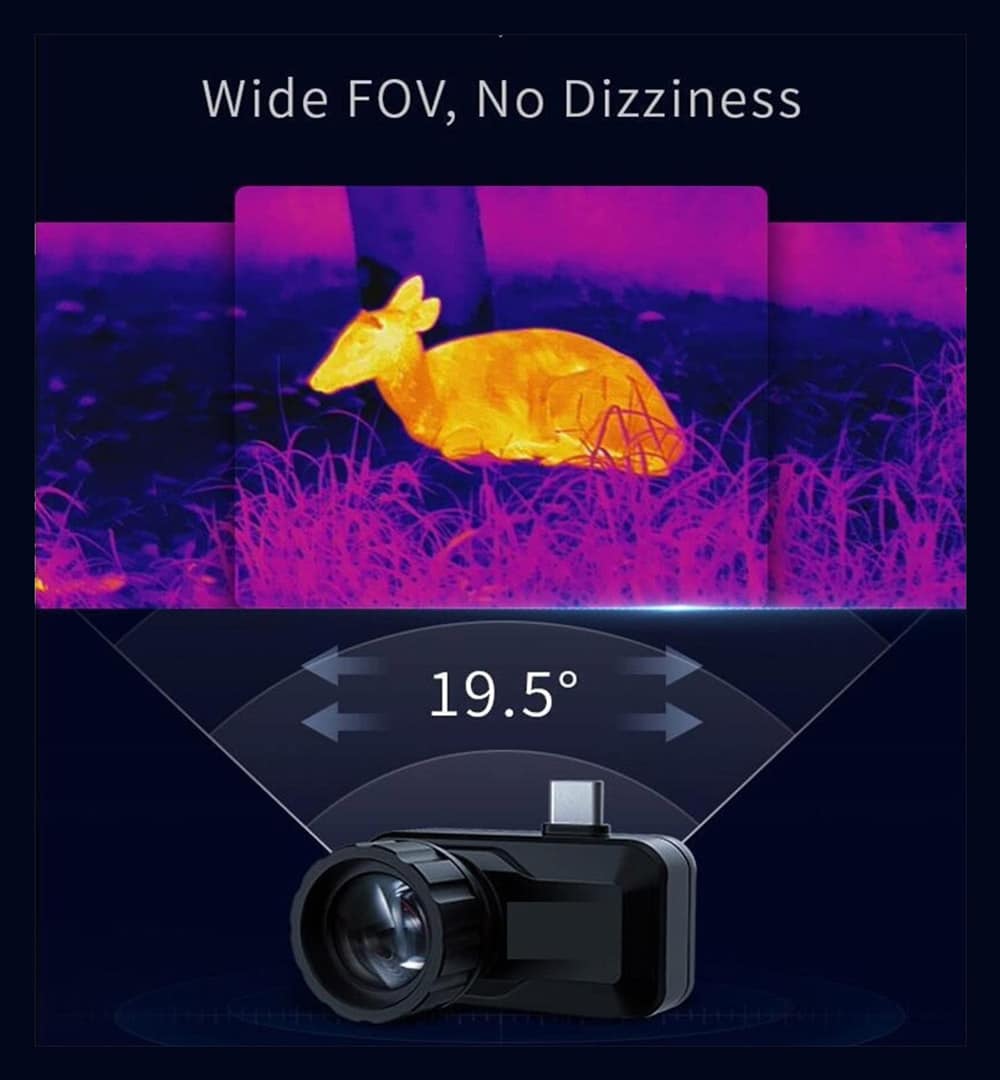

[19mm Long-Focus Lens for Extended Detection] Equipped with a 19mm lens and a 19.5°×14.7° field of view, T3 provides a focused thermal view for observing distant heat sources while maintaining clear target details.
[25Hz Smooth Thermal Imaging Performance] With a 25Hz frame rate and ≤50mK NETD sensitivity, T3 captures smooth and stable thermal images while detecting subtle temperature differences in various environments.

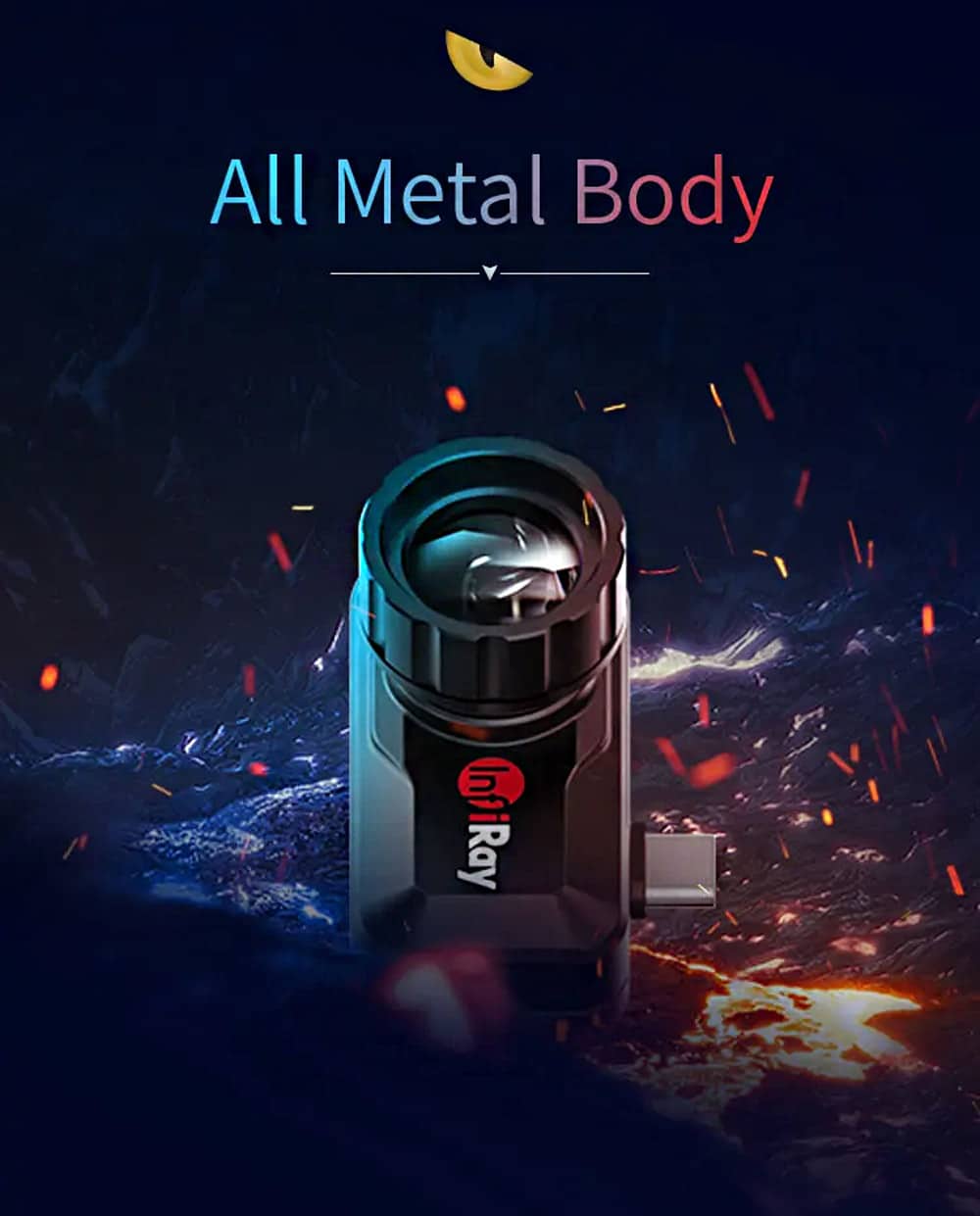

[Compact Smartphone Thermal Camera Design] Weighing less than 40g, InfiRay T3 connects with Android devices through a compact design, transforming your smartphone into a portable thermal imaging system for convenient field use.
[Smart Thermal Analysis & Recording Functions] Supporting hotspot tracking, reticle display, temperature correction, multiple color palettes, and photo/video storage, T3 provides flexible thermal analysis for outdoor exploration and professional inspection tasks.
Freeshipping On All Orders
We provide worldwide freeshipping for every order,every day,no moq required.
No import charges for all items and no extra charges upon delivery
Official Authorized Distributor
RUGGEDZONE.COM is an authorized distributor on all brands we sell. As an authorized distributor we have extensive knowledge and insight about the products and can provide you with the necessary education for using the products. Also as an authorized dealer this will give you a peace of mind knowing that you have a full warranty on all the products that you buy from us.
Two Years Warranty
We double all 2-year manufacturer warranty’s and take care of everything for you. No waiting on hold with the manufacturer.
2 years warranty, 100% authentic guaranteed
Free returns within 30 days of purchase
We hope you'll love your products from the RUGGEDZONE.COM Store, but if something isn't quite right, you can send it back with our flexible 30-day returns policy as long as it's in good working condition. Learn More >
Price adjustment within 30 days of payment
Items purchased from RUGGEDZONE.COM are eligible for our price adjustment policy. We will provide the price difference in the currency that the order was paid in if the selling price of the item purchased was reduced within 30 days of payment in the same country or region. The shipment of your order will not be affected by applying for a price adjustment before you receive your item(s).
30-day Easy Free Returns Policy, 30-Day Price Adjustments
Safe Payment Options
Secure Privacy
Protecting your privacy is important to us! Please be assured that your information will be kept secured and uncompromised. We do not sell your personal information for money and will only use your information in accordance with our privacy and cookie policy to provide and improve our services to you. Learn More >
Safe Payment Options,Purchase protection
You May Also Like
Model InfiRay T3
Product Type Mobile Thermal Imaging Camera
Compatible Device Android Smartphones
Supported OS Android 6.0 and Above
Thermal Resolution 384 × 288 pixels
Pixel Pitch 17μm
Frame Rate 25Hz
NETD ≤50mK @25℃, F#1.0
MRTD ≤400mK @25℃, F#1.0
Focal Length 19mm Lens
Field of View (FOV) 19.5° × 14.7°
Temperature Measurement Range 0℃ to 80℃
Temperature Accuracy ±3℃
Temperature Correction Manual / Automatic
Operating Temperature -10℃ to +50℃
Power Consumption <500mW
Weight <40g
Dimension 49.5 × 26 × 30mm
Image Enhancement Digital Detail Enhancement (DDE)
Image Correction Manual Correction
Color Palettes White Hot, Black Hot, Red Hot, Multiple Palettes
Measurement Functions Temperature Measurement, Hot Spot Tracking
Reticle Supported
Video & Image Storage Photo and Video Recording
Secondary Development SDK Available

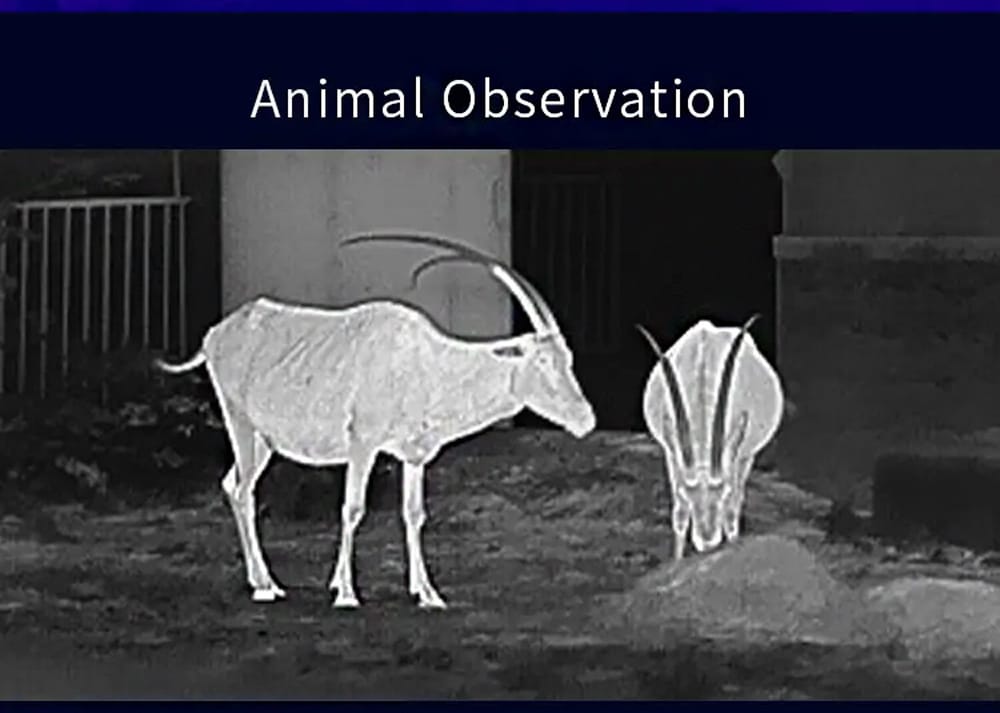

Applications Wildlife Observation, Outdoor Exploration, Equipment Inspection, Temperature Analysis
Product Type Mobile Thermal Imaging Camera
Compatible Device Android Smartphones
Supported OS Android 6.0 and Above
Thermal Resolution 384 × 288 pixels
Pixel Pitch 17μm
Frame Rate 25Hz
NETD ≤50mK @25℃, F#1.0
MRTD ≤400mK @25℃, F#1.0
Focal Length 19mm Lens
Field of View (FOV) 19.5° × 14.7°
Temperature Measurement Range 0℃ to 80℃
Temperature Accuracy ±3℃
Temperature Correction Manual / Automatic
Operating Temperature -10℃ to +50℃
Power Consumption <500mW
Weight <40g
Dimension 49.5 × 26 × 30mm
Image Enhancement Digital Detail Enhancement (DDE)
Image Correction Manual Correction
Color Palettes White Hot, Black Hot, Red Hot, Multiple Palettes
Measurement Functions Temperature Measurement, Hot Spot Tracking
Reticle Supported
Video & Image Storage Photo and Video Recording
Secondary Development SDK Available
Applications Wildlife Observation, Outdoor Exploration, Equipment Inspection, Temperature Analysis
Q & A
Ask a question
InfiRay T3 Smartphone Thermal Camera 384×288 Infrared Imager with 25Hz Frame Rate, 19mm Lens, 50mK Sensitivity and Hot Spot Tracking for Android
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
| Detail Specs | |
|---|---|
| MODEL: | InfiRay T3 |
| Product Type | Mobile Thermal Imaging Camera |
| Compatible Device | Android Smartphones |
| Supported OS | Android 6.0 and Above |
| Thermal Resolution | 384 × 288 pixels |
| Pixel Pitch | 17μm |
| Frame Rate | 25Hz |
| NETD | ≤50mK @25℃, F#1.0 |
| MRTD | ≤400mK @25℃, F#1.0 |
| Focal Length | 19mm Lens |
| Field of View (FOV) | 19.5° × 14.7° |
| Temperature Measurement Range | 0℃ to 80℃ |
| Temperature Accuracy | ±3℃ |
| Temperature Correction | Manual / Automatic |
| Operating Temperature | -10℃ to +50℃ |
| Power Consumption | <500mW |
| Weight | <40g |
| Dimension | 49.5 × 26 × 30mm |
| Image Enhancement | Digital Detail Enhancement (DDE) |
| Image Correction | Manual Correction |
| Color Palettes | White Hot, Black Hot, Red Hot, Multiple Palettes |
| Measurement Functions | Temperature Measurement, Hot Spot Tracking |
| Reticle | Supported |
| Video & Image Storage | Photo and Video Recording |
| Secondary Development | SDK Available |
| Applications | Wildlife Observation, Outdoor Exploration, Equipment Inspection, Temperature Analysis |
| Factory Warranty | 2 Years |
