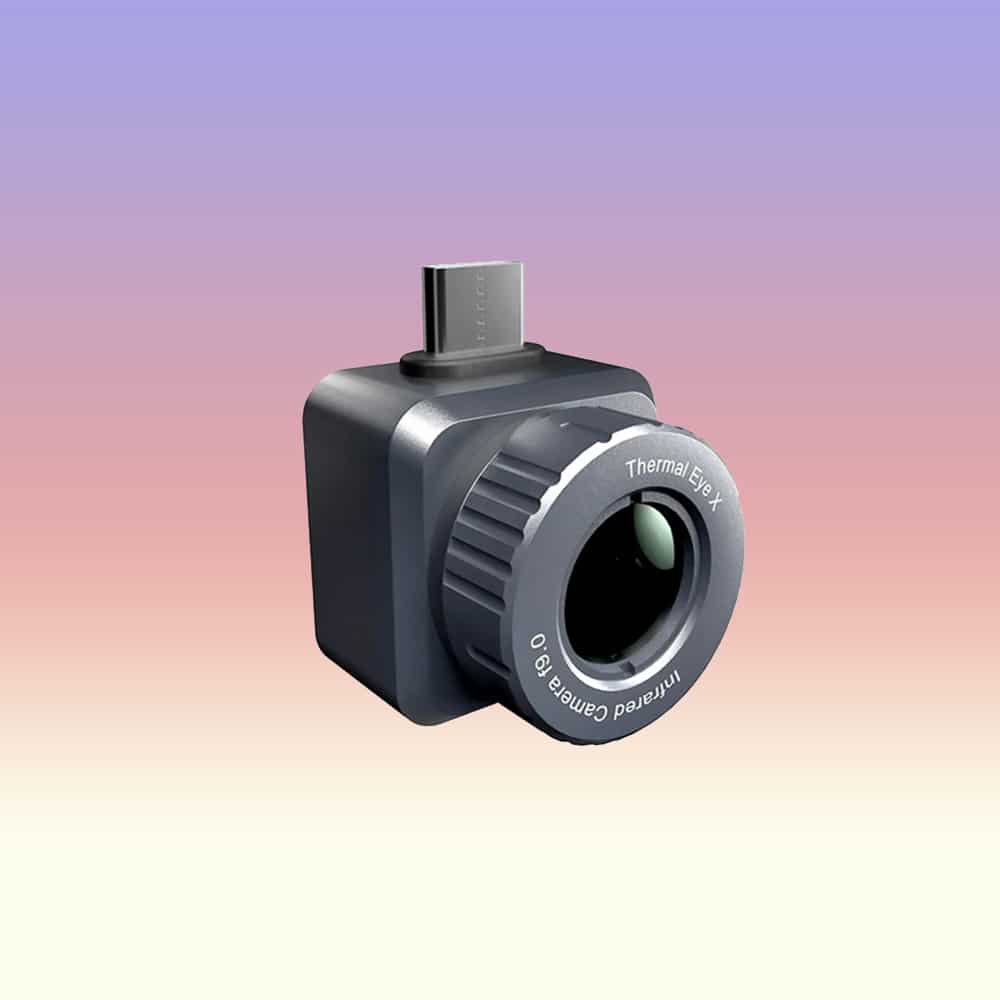

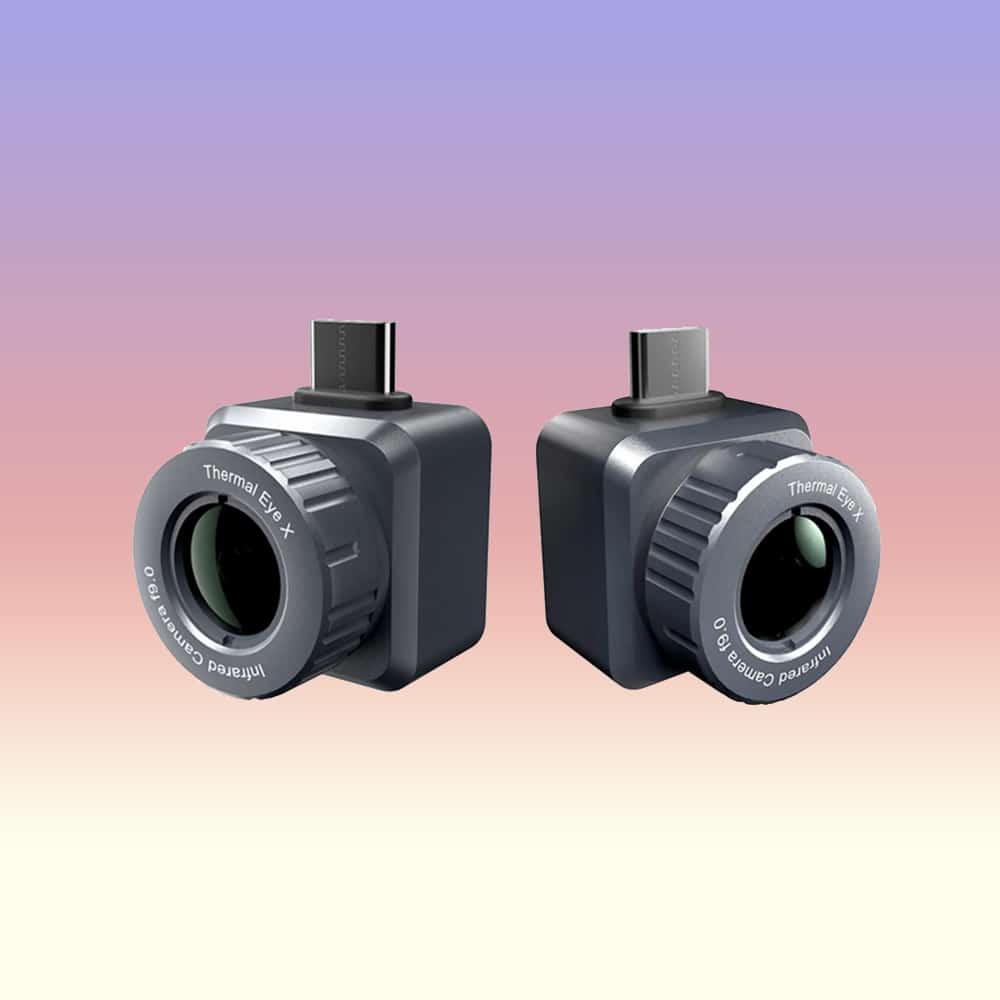

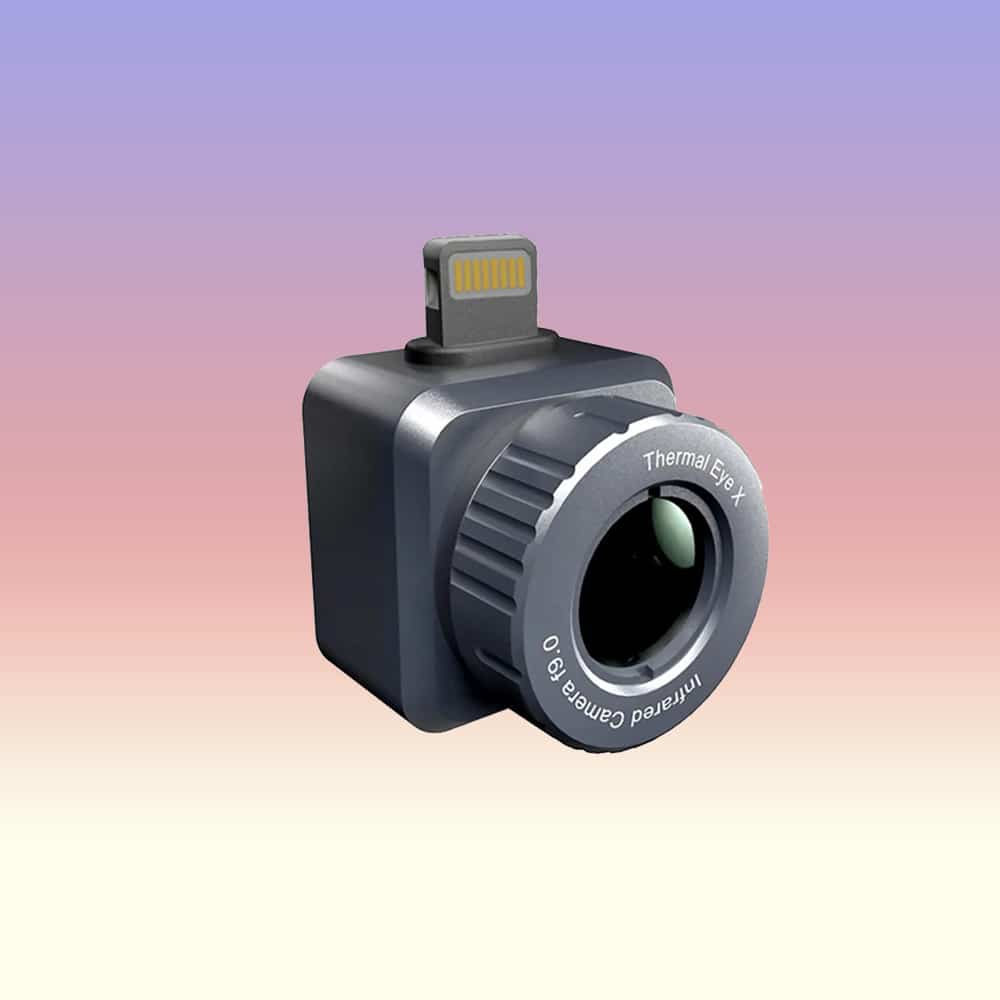

Xinfrared XH09 Smartphone Thermal Camera 256×192 50Hz Long Range Infrared Imager with 9mm Lens 15X Zoom for Outdoor Inspection
0
days
00
hr
00
min
00
sc
Original price was: $779.99.$469.99Current price is: $469.99.
Why You’ll Love It?
[256×192 Thermal Imaging with 50Hz High Frame Rate] The Xinfrared XH09 thermal camera features a 256×192 infrared sensor with 12μm pixel pitch and a 50Hz refresh rate, delivering smooth and detailed thermal images for fast-moving targets, outdoor observation, and inspection tasks.

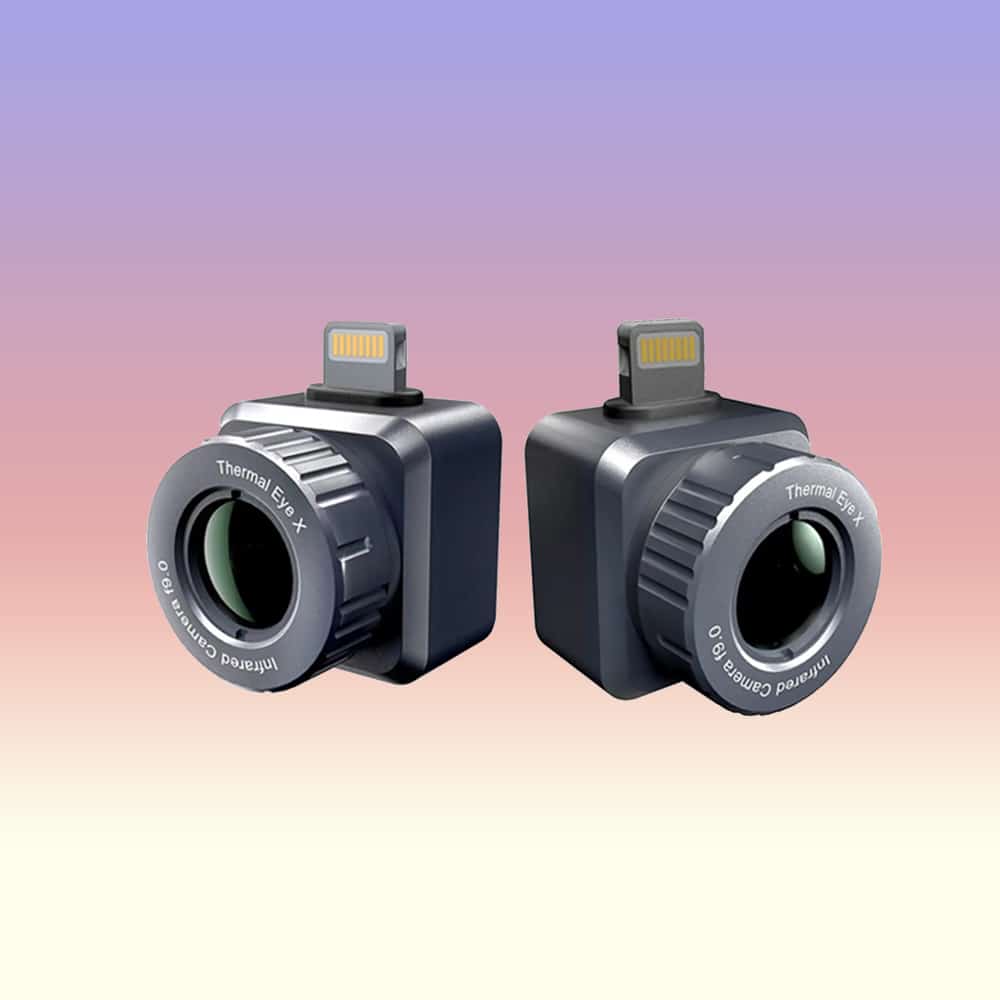

[9mm Long-Focus Lens for Extended Observation] Equipped with a 9mm adjustable focusing lens, XH09 provides enhanced long-distance thermal viewing compared with standard smartphone thermal cameras, making it suitable for wildlife observation, outdoor exploration, and remote inspection.
[Ultra-High Sensitivity with 40mK NETD] Featuring ≤40mK thermal sensitivity and advanced image enhancement algorithms, XH09 detects subtle temperature differences as small as 0.04°C, helping reveal hidden heat sources in various environments.
[Smartphone Thermal Camera with Multiple Applications] XH09 instantly transforms smartphones or tablets into thermal imaging devices through the Thermal Eye X app, supporting outdoor activities, wildlife observation, HVAC inspection, electrical checks, and home maintenance.

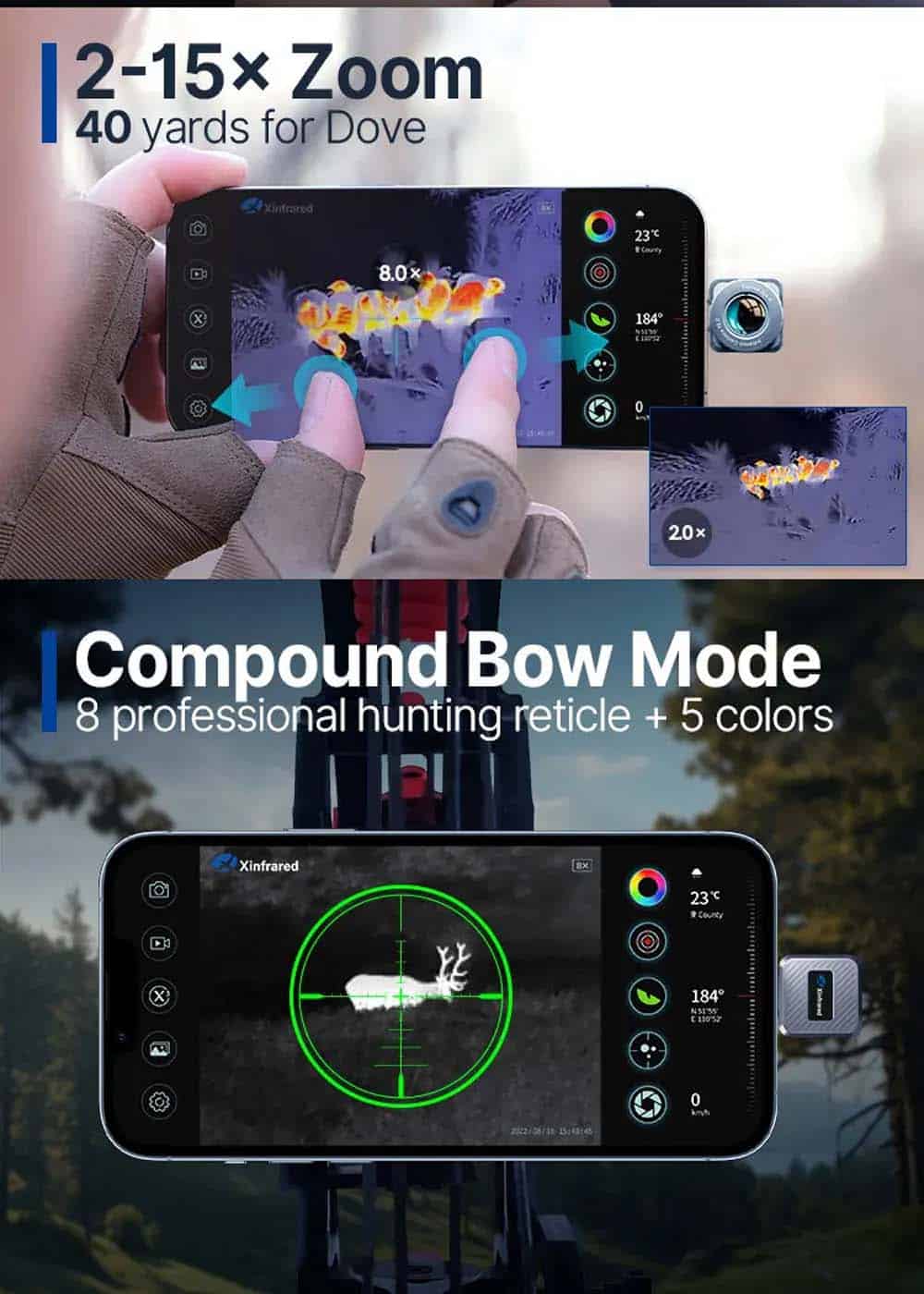

[2–15X Digital Zoom & Flexible Thermal Analysis] With continuous 2–15X digital zoom, multiple thermal palettes, hot spot tracking, temperature correction, and image enhancement features, XH09 provides flexible thermal analysis for both outdoor and professional applications.
Freeshipping On All Orders
We provide worldwide freeshipping for every order,every day,no moq required.
No import fees or extra delivery charges worldwide
Official Authorized Distributor
RUGGEDZONE.COM is an authorized distributor on all brands we sell. As an authorized distributor we have extensive knowledge and insight about the products and can provide you with the necessary education for using the products. Also as an authorized dealer this will give you a peace of mind knowing that you have a full warranty on all the products that you buy from us.
Two Years Warranty
We double all 2-year manufacturer warranty’s and take care of everything for you. No waiting on hold with the manufacturer.
2-year warranty and 100% authentic products
Free returns within 30 days of purchase
We hope you'll love your products from the RUGGEDZONE.COM Store, but if something isn't quite right, you can send it back with our flexible 30-day returns policy as long as it's in good working condition. Learn More >
Price adjustment within 30 days of payment
Items purchased from RUGGEDZONE.COM are eligible for our price adjustment policy. We will provide the price difference in the currency that the order was paid in if the selling price of the item purchased was reduced within 30 days of payment in the same country or region. The shipment of your order will not be affected by applying for a price adjustment before you receive your item(s).
30-day free returns and 30-day price adjustments
Safe Payment Options
Secure Privacy
Protecting your privacy is important to us! Please be assured that your information will be kept secured and uncompromised. We do not sell your personal information for money and will only use your information in accordance with our privacy and cookie policy to provide and improve our services to you. Learn More >
Secure payment options and purchase protection
You May Also Like
RuggedZone Buying Verdict
Score Breakdown
-
Thermal Detail & Sensitivity - 91%
91%
-
Temperature Measurement & Analysis - 93%
93%
-
Lens, Range & Inspection Utility - 93%
93%
-
App & Smartphone Workflow - 91%
91%
-
Portability & Field Readiness - 91%
91%
92%
Who Should Buy It?
Why it stands out: Its strongest combination is 256×192 thermal detail in a compact plug-in workflow.
Best for: field users comparing temperature differences without carrying a full handheld imager.
Not ideal for: users who never need temperature visualization.
Quick buying question: Is the Xinfrared XH09 Smartphone Thermal Camera right for you? Do you need a compact thermal imager that works through your smartphone? Compare smartphone thermal cameras.
Evaluated by RuggedZone’s product experts using brand-provided information, product-feature analysis and publicly available market-use feedback.
Pros
- Xinfrared XH09 Smartphone Thermal Camera delivers 256×192 thermal detail for locating hot spots, heat loss and uneven temperature patterns
- For day-to-day field use, Xinfrared XH09 Smartphone Thermal Camera adds this advantage: A 50Hz thermal refresh supports smoother scanning across moving scenes
- One of Xinfrared XH09 Smartphone Thermal Camera’s useful strengths is clear here: 40mK sensitivity helps reveal small temperature differences
- In active work settings, Xinfrared XH09 Smartphone Thermal Camera benefits from this feature: Measurement support up to 100°C expands its use around hotter equipment
- This is another reason Xinfrared XH09 Smartphone Thermal Camera stands out: Its optical toolkit includes a 9mm lens and 15× zoom for more targeted inspection
Cons
- Worth knowing before first use of Xinfrared XH09 Smartphone Thermal Camera: Temperature palettes take a short familiarization period
- A little preparation helps with Xinfrared XH09 Smartphone Thermal Camera: Phone orientation may need adjustment for a comfortable scan
- For the smoothest start with Xinfrared XH09 Smartphone Thermal Camera: Very small targets are easier to evaluate after a steady pause
Model Xinfrared XH09
Product Type Mobile Thermal Imaging Camera
Compatible Devices Smartphones, Tablets
Operating System Android 9.0+ / iOS 11+
Thermal Resolution 256 × 192 pixels
Pixel Pitch 12μm
Frame Rate 50Hz
NETD 40mK @77°F, F#1.0
Sensor Technology InfiRay Thermal Sensor
AI Temperature Measurement AI-Temp, Accuracy ±3°C
Temperature Measurement Range 0°C to 100°C
Focal Length 9mm Adjustable Focus Lens
Field of View (FOV) 19.63° × 14.71°
Digital Zoom 2×–15× Continuous Digital Zoom
Focus Mode Adjustable Focus
Image Enhancement Digital Detail Enhancement (DDE), X3 Image Algorithm
Dual Image Modes High Definition Mode / Heat Highlight Mode
Color Palettes Night Vision Green, Bird, White Hot, Black Hot, Red Head, Iron Red
Measurement Correction Temperature Correction, Distance Correction
Temperature Measurement Methods Hot Spot Tracking, AI Temperature Analysis
Reticle 7 Shapes + 5 Colors Quick Switching
Tactical Assist E-Compass, Speed, Position, Weather, Time
Weight 18.5g (With Lens)
Dimension 23mm × 23mm × 23.8mm (With Lens)
Operating Temperature -20°C to 60°C
Battery Usage 300–480 Minutes (Depending on Connected Smartphone)
Observation Distance Up to 504m (Target and Environment Dependent)
Video & Image Storage Photo and Video Recording
Product Type Mobile Thermal Imaging Camera
Compatible Devices Smartphones, Tablets
Operating System Android 9.0+ / iOS 11+
Thermal Resolution 256 × 192 pixels
Pixel Pitch 12μm
Frame Rate 50Hz
NETD 40mK @77°F, F#1.0
Sensor Technology InfiRay Thermal Sensor
AI Temperature Measurement AI-Temp, Accuracy ±3°C
Temperature Measurement Range 0°C to 100°C
Focal Length 9mm Adjustable Focus Lens
Field of View (FOV) 19.63° × 14.71°
Digital Zoom 2×–15× Continuous Digital Zoom
Focus Mode Adjustable Focus
Image Enhancement Digital Detail Enhancement (DDE), X3 Image Algorithm
Dual Image Modes High Definition Mode / Heat Highlight Mode
Color Palettes Night Vision Green, Bird, White Hot, Black Hot, Red Head, Iron Red
Measurement Correction Temperature Correction, Distance Correction
Temperature Measurement Methods Hot Spot Tracking, AI Temperature Analysis
Reticle 7 Shapes + 5 Colors Quick Switching
Tactical Assist E-Compass, Speed, Position, Weather, Time
Weight 18.5g (With Lens)
Dimension 23mm × 23mm × 23.8mm (With Lens)
Operating Temperature -20°C to 60°C
Battery Usage 300–480 Minutes (Depending on Connected Smartphone)
Observation Distance Up to 504m (Target and Environment Dependent)
Video & Image Storage Photo and Video Recording
Q & A
Ask a question
Xinfrared XH09 Smartphone Thermal Camera 256×192 50Hz Long Range Infrared Imager with 9mm Lens 15X Zoom for Outdoor Inspection
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
| Detail Specs | |
|---|---|
| MODEL: | Xinfrared XH09 |
| Product Type | Mobile Thermal Imaging Camera |
| Compatible Devices | Smartphones, Tablets |
| Operating System | Android 9.0+ / iOS 11+ |
| Thermal Resolution | 256 × 192 pixels |
| Pixel Pitch | 12μm |
| Frame Rate | 50Hz |
| NETD | 40mK @77°F, F#1.0 |
| Sensor Technology | InfiRay Thermal Sensor |
| AI Temperature Measurement | AI-Temp, Accuracy ±3°C |
| Temperature Measurement Range | 0°C to 100°C |
| Focal Length | 9mm Adjustable Focus Lens |
| Field of View (FOV) | 19.63° × 14.71° |
| Digital Zoom | 2×–15× Continuous Digital Zoom |
| Focus Mode | Adjustable Focus |
| Image Enhancement | Digital Detail Enhancement (DDE), X3 Image Algorithm |
| Dual Image Modes | High Definition Mode / Heat Highlight Mode |
| Color Palettes | Night Vision Green, Bird, White Hot, Black Hot, Red Head, Iron Red |
| Measurement Correction | Temperature Correction, Distance Correction |
| Temperature Measurement Methods | Hot Spot Tracking, AI Temperature Analysis |
| Reticle | 7 Shapes + 5 Colors Quick Switching |
| Tactical Assist | E-Compass, Speed, Position, Weather, Time |
| Weight | 18.5g (With Lens) |
| Dimension | 23mm × 23mm × 23.8mm (With Lens) |
| Operating Temperature | -20°C to 60°C |
| Battery Usage | 300–480 Minutes (Depending on Connected Smartphone) |
| Observation Distance | Up to 504m (Target and Environment Dependent) |
| Video & Image Storage | Photo and Video Recording |
| Factory Warranty | 2 Years |
