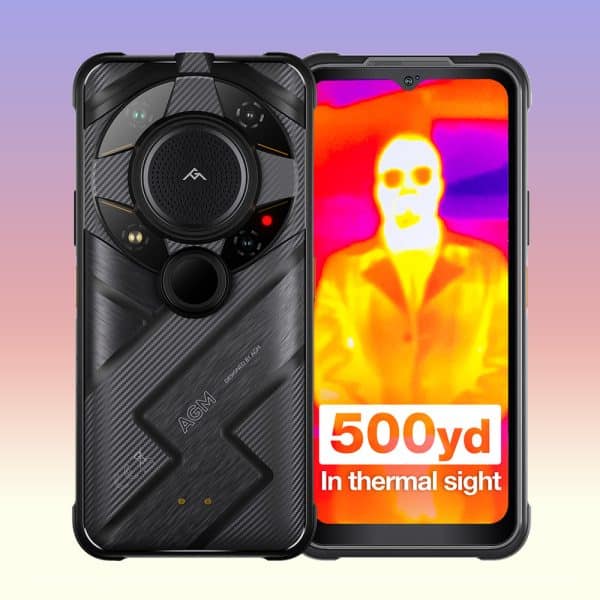

AGM G2 Guardian 5G Thermal Imaging Rugged Phone with Qualcomm QCM6490 Processor, 12GB+256GB Storage, 7000mAh Battery, 6.58″ FHD+ 120Hz Display
Price range: $799.99 through $849.99

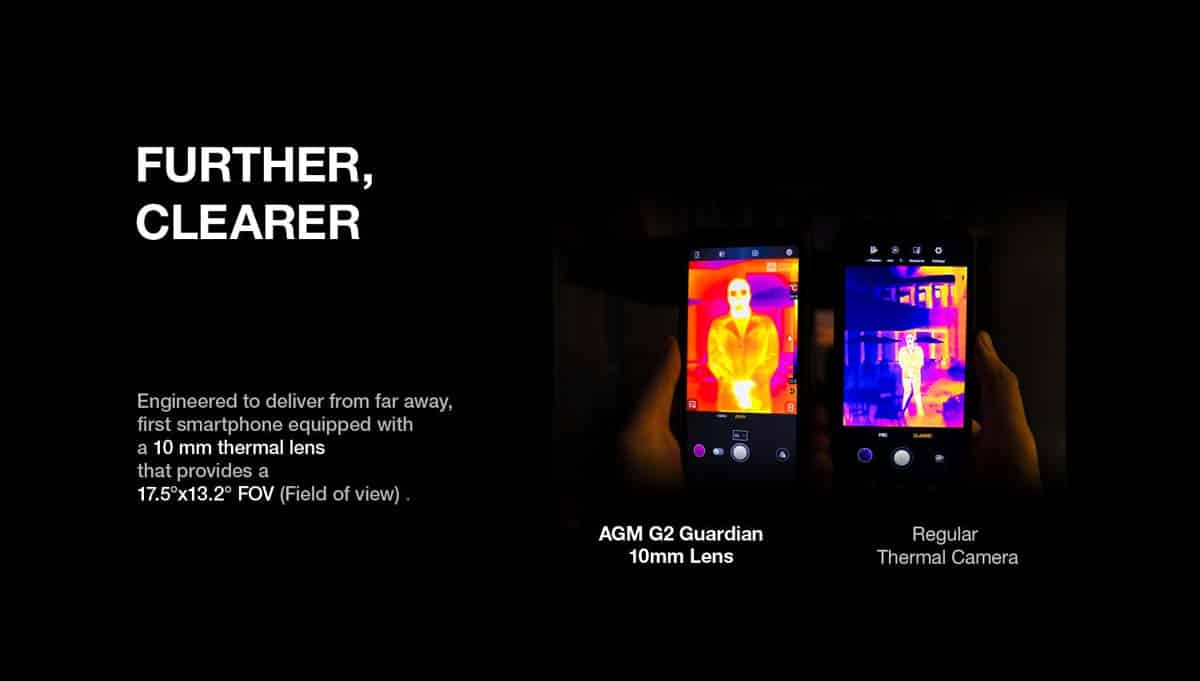

Integrated 256×192 Thermal Imaging System: Built with a professional vanadium oxide uncooled thermal sensor, featuring 256×192 resolution, 10mm lens, and up to 500m detection range for reliable heat detection in darkness, fog, smoke, and harsh outdoor environments.
Advanced Thermal Tracking & On-Board Recording: Supports hottest, coldest, and average temperature tracking with real-time thermal analysis, plus onboard video recording and snapshot capture for inspections, observation, and field documentation.

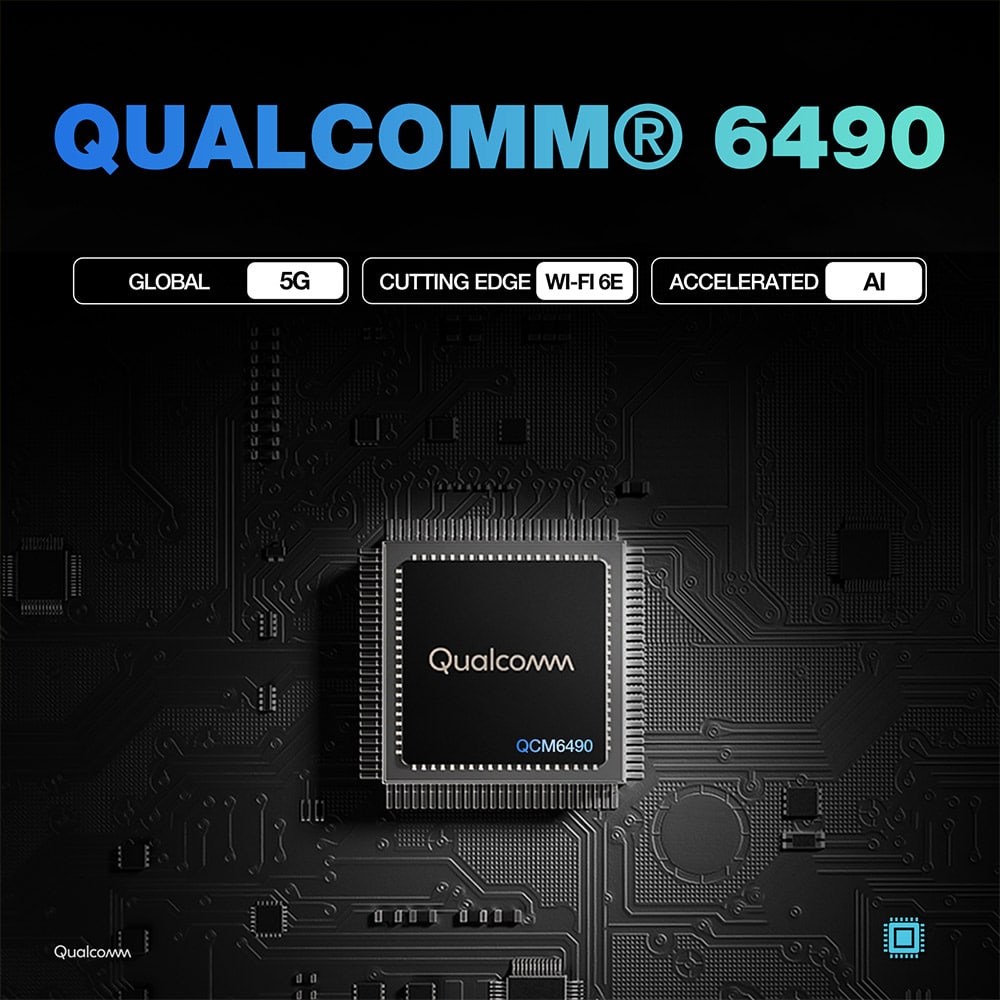

Qualcomm QCM6490 5G Performance Platform: Powered by the Qualcomm QCM6490 chipset with Kryo 670 CPU and Adreno 643 GPU, delivering fast AI processing, stable 5G connectivity, and smooth multitasking performance.
6.58″ FHD+ 120Hz Display with Rugged Design: Features a large FHD+ 120Hz display for smooth viewing and responsive operation, combined with IP68/IP69K and MIL-STD-810H protection for extreme outdoor durability.
7000mAh Battery with Night Vision & Outdoor Features: Equipped with a long-lasting 7000mAh battery, 108MP main camera, 20MP infrared night vision camera, wireless charging, NFC, dual-frequency GPS positioning, and support for thermal + optical outdoor applications.
| Detail Specs | |
|---|---|
| MODEL: | AGM G2 Guardian |
| Chipset | Qualcomm QCM6490 |
| CPU | Kryo 670 |
| GPU | Adreno 643 |
| Operating System | Android S (Original Android) |
| Dimensions | 177.5 × 85.3 × 25.3 mm |
| Weight | 405 g |
| AI Button | Supported |
| Screen Size | 6.58 inch |
| Screen Resolution | FHD+ |
| Refresh Rate | 120Hz |
| Touch Type | INCELL |
| Rear Camera | 108MP |
| Infrared Night Vision Camera | 20MP |
| Macro Camera | 2MP |
| Thermal Camera Resolution | 256 × 192 |
| Thermal Lens | 10mm |
| Thermal Detector Type | Vanadium Oxide Uncooled FPA |
| Thermal Pixel Pitch | 12μm |
| Thermal NETD | <60mK (@25°C, F#=1.0) |
| Thermal Refresh Rate | 25Hz |
| Detection Range | 500m (6ft object) |

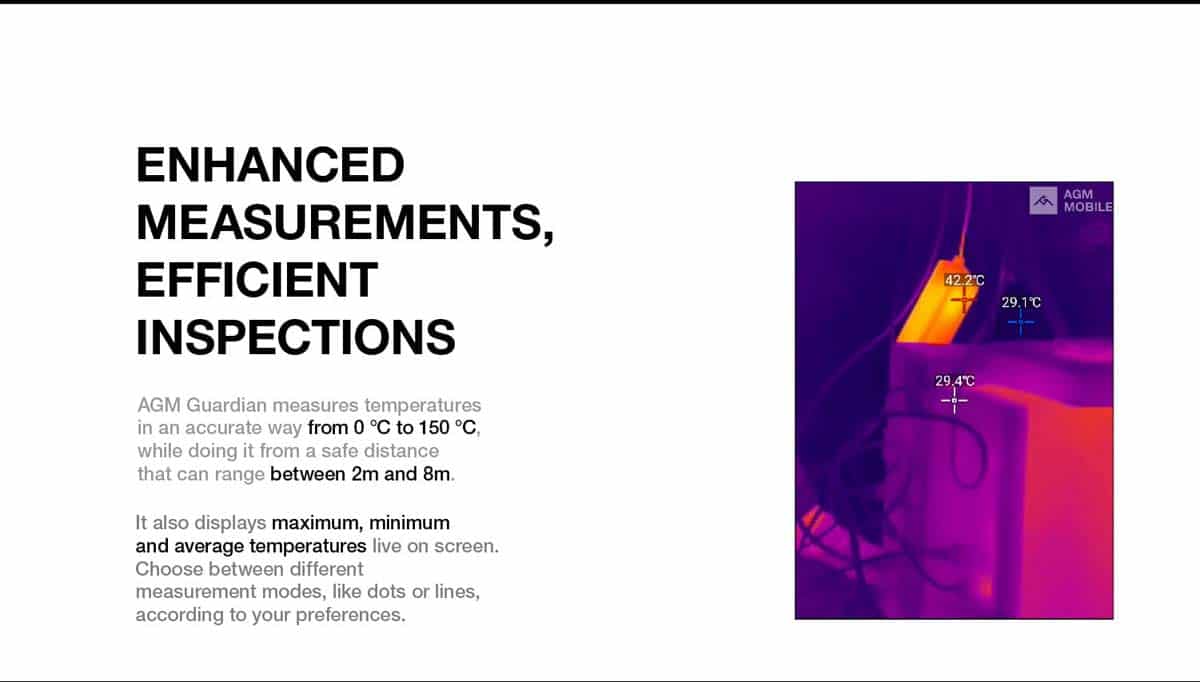

| Temperature Tracking | Highest / Lowest / Average Spot Tracking |
| Aperture | F1.0 |
| Magnification | 5x |
| Field of View | 17.5° × 13.2° |

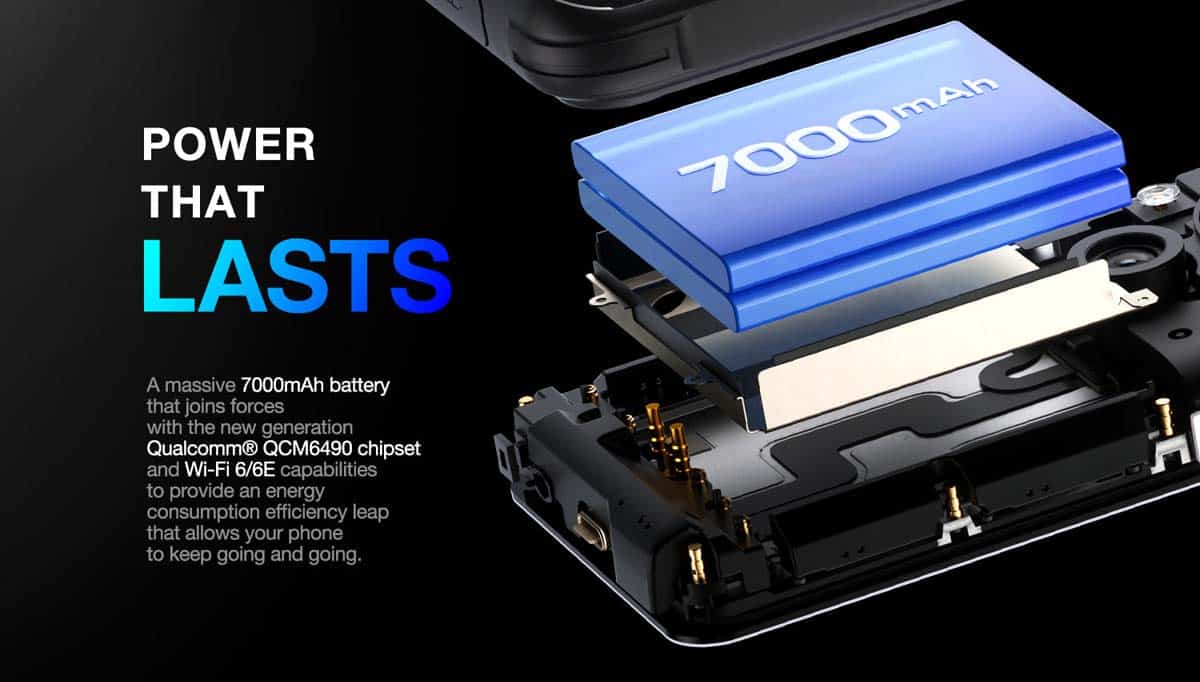

| Battery Capacity | 7000mAh |
| Fast Charging | 18W |
| Wireless Charging | 10W Supported |
| USB Interface | Type-C Waterproof 3.0 |
| OTG | Supported |
| Display Port (DP) | Supported |
| SIM Type | Dual SIM |
| SIM Slot | Two out of three |
| Storage | UFS 2.2 |
| RAM + ROM Options | 8GB + 256GB / 12GB + 256GB |
| TF Card Support | Up to 512GB |
| WiFi | 802.11 a/b/g/n/ac/ax |
| Bluetooth | V5.2 |
| NFC | Supported |
| GPS | GPS + GLONASS |
| Compass Navigation | Supported |
| Satellite Positioning | Dual frequency supported |
| 4G LTE Bands | B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66/71 |
| 5G Bands | n1/n2/n3/n5/n7/n8/n28/n41/n66/n71/n77/n78/n79 |
| MIMO | 4×4 |
| Video Recording | On-board recording supported |
| Snapshot | Supported |
| Speaker Power | 3.5W |
| SIM Hot Swap | Supported |
| Fingerprint Sensor | Side-mounted |
| Gyroscope | Supported |
| Geomagnetic Sensor | Supported |
| Gravity Sensor | Supported |
| Proximity Sensor | Supported |
| Ambient Light Sensor | Supported |
| Protection Rating | IP68 / IP69K / MIL-STD-810H |
| Operating Temperature | -20°C to 60°C |
| Drop Resistance | 1.5m |
| Multi-language Menu | Supported |
| Factory Warranty | 2 Years |
Thermal Monocular
Working Temperature: -10°C to 60°C (-14°F to 140°F)
Interface: USB Type-C
Highest Temperature Spot Tracking: Yes
Lowest Temperature Spot Tracking: Yes
Average Temperature Spot Tracking: Yes
Refresh rate: Sensor 25 Hz
Aperture: F1.0
Resolution: 256×192
Detection Range (6' object): 500m/yd
NETD: Less than 60 mk (@25°C), F#=1.0
Lens (focal length): 10 mm
Power: 3.3 V±0.3V<0.6W
Field of view (H × X): 17.5° × 13.2° (H × V)
Record Video: On-board video recording
Capture Snapshot: Yes
Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Protection Level: IP68/IP69K/MIL-STD-810H
Magnification: 5x
Pixel Interval: 12μm
Multi Language menu: Yes
Drop Test Height: 1.5m (4.9 feet)
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

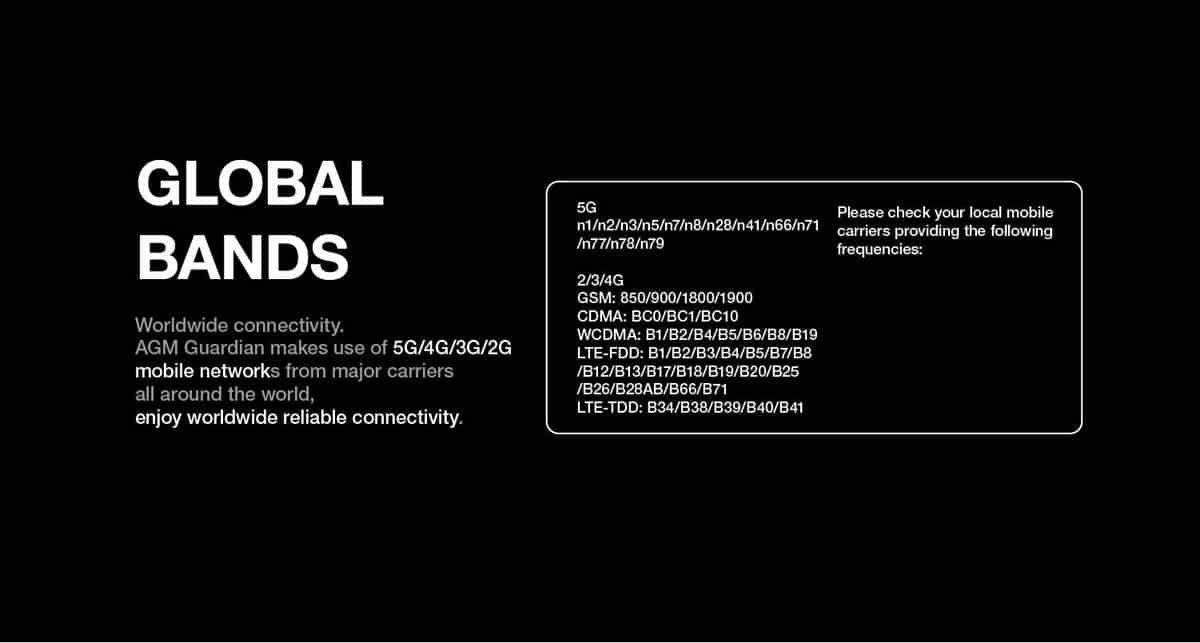

Standard Frequency Band
2/3/4G
Band
GSM: 850,900,1800,1900 CDMA:BC0, BC1, BC10 WCDMA: B1,B2,B4,B5,B6,B8,B19 LTE-FDD: B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B18,B19,B20,B25,B26,B28AB,B66、B71 LTE-TDD: B34 B38 B39 B40 B41
CA
MIMO: 4*4
LTE Cat/Max Speed
DL：cat18 MAX 1.2Gbps（DL 256QAM） UL：cat18 MAX 200Mbps（UL 256QAM）
5G
Band: n1, n2, n3, n5, n7, n8, n28, n41, n66,n71, n77, n78,n79
NSA: Support, Option 3x/3a
SA: Support, Option 2
MIMO: n1/n2/n3/n7/n66/n77/n78/n79 Four Downstream, Single Upstream, n41 Four Downstream, Dual Upstream
SRS
SA SRS: n41:2T4R，n77/n78/n79：1T4R NSA SRS：n41/n77/n78/n79 1T4R
HPUE: n41/n78/N79： Total Power 26dBm
EN_DC
CA
Sim mode
Dual Sim Requirements: Support
Sim Switch: Support
Voice
WCDMA WB: Support
VOLTE: Support
VONR: Support
ID Design
Size: 177.5mm*85.3mm*25.3mm
Weight: 405g
AI button: Support
Operation System:Android S Original Android
Chipset
Chipset: Qualcomm QCM6490
CPU: Kryo 670
GPU: Adreno 643
Card slot
Card Slots: Two out of three
SIM Card Hot Swap:Support
Storage

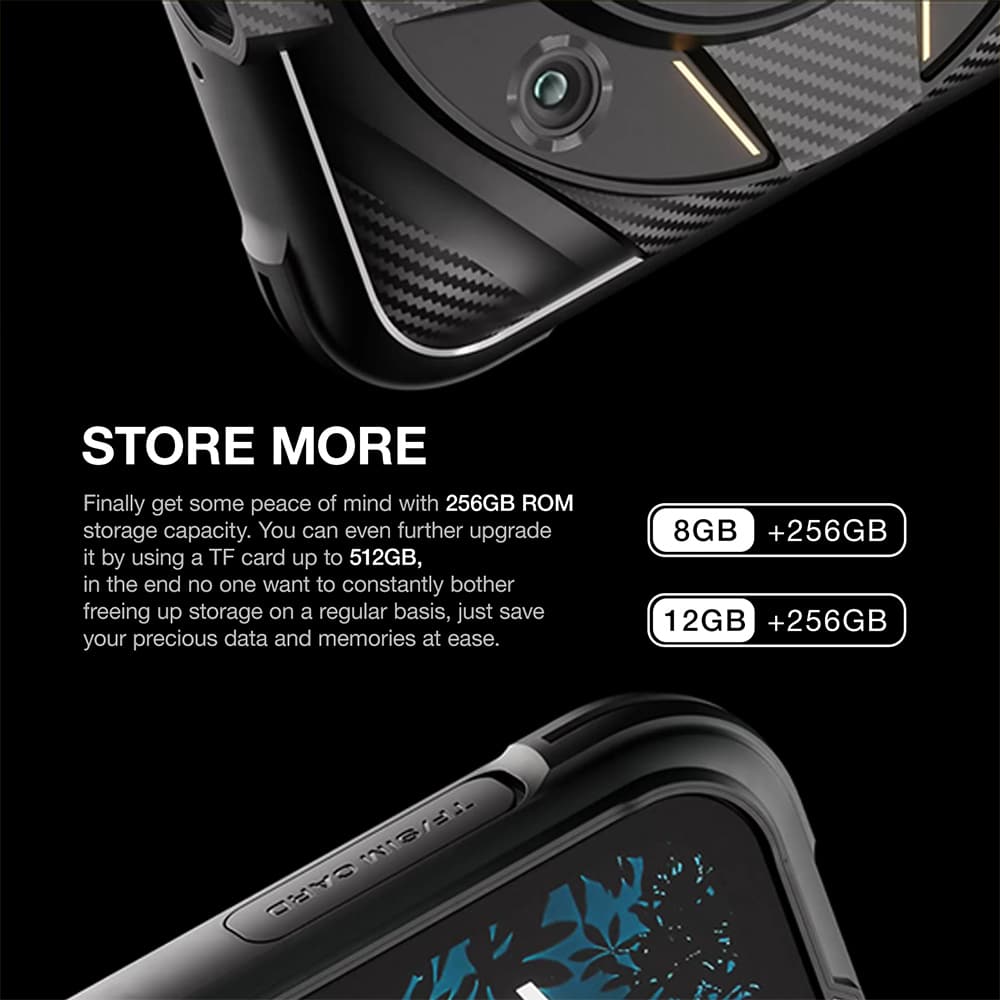

Capacity: UFS2.2, 8G+256G & 12G+256G
Expandable Storage (TF Card):Support , 512G
Screen
Size: 6.58'
Resolution: FHD+
Refreshing Rate: 120HZ
Touch Screen
Touch type: INCELL

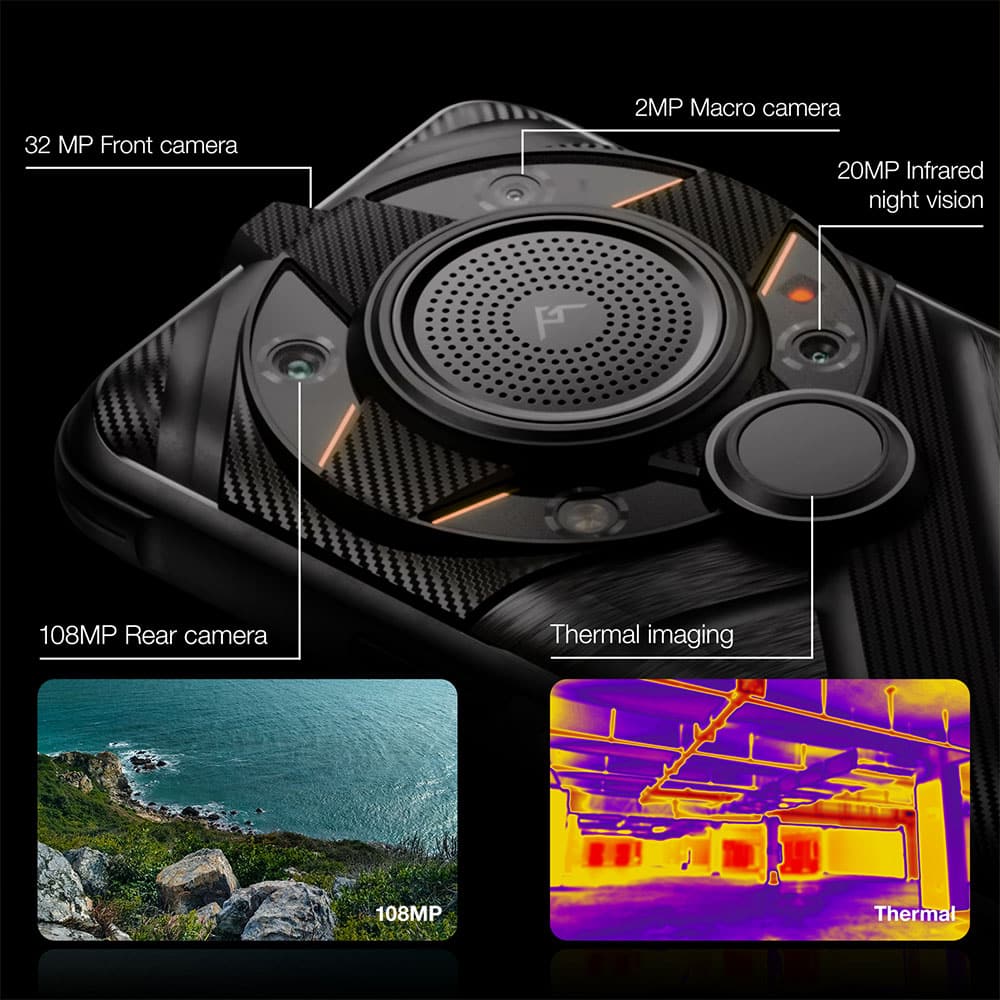

Cameras
Pixels
108MP Rear Camera
20MP Infrared night vision Camera
2MP Macro Camera
256*192 Thermal Camera (10mm lens)
sensor: TBD
Flashlight: Support
Front Camera
Pixels: 32M
sensor
Other cameras requests
Top Torch Modular: Support
Sensor
Light Sensor: Support
Distance sensor: Support
Gravity Acceleration Sensor: Support
Geomagnetic sensor: Support
Fingerprint recognition sensor: Support, on side-key
Gyro sensor: Support
I/O interface
Interface Type: TYPE-C，waterproof 3.0
OTG Function: Support
DP: Support
Type: 3.5mm
Sound
MIC: Dual-mic
PA: 3.5W Speaker
Stereo: Not Support
Motor: Support
Speaker Effect: Default algorithm
Headphone Effect: No

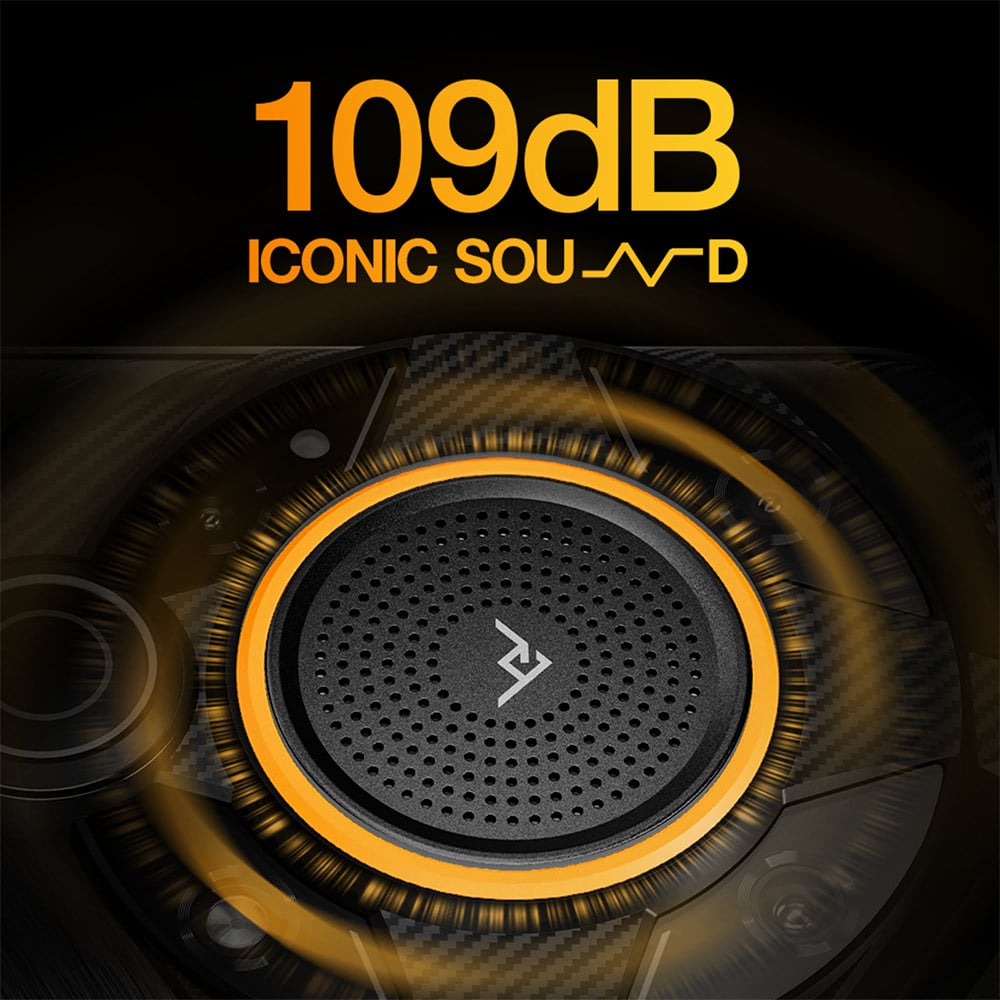

Speaker: AGM Iconic Speaker
Direction: Back
WLAN agreement: 802.11a/b/g/n/ac/ax
satellite positioning
satellite positioning: GPS, GLONASS, Compass navigation system
Dual Frequency Positioning: Support
Other wireless functions
Bluetooth: V5.2
NFC: Support
Wireless charging: Support, 10W
Accessibility

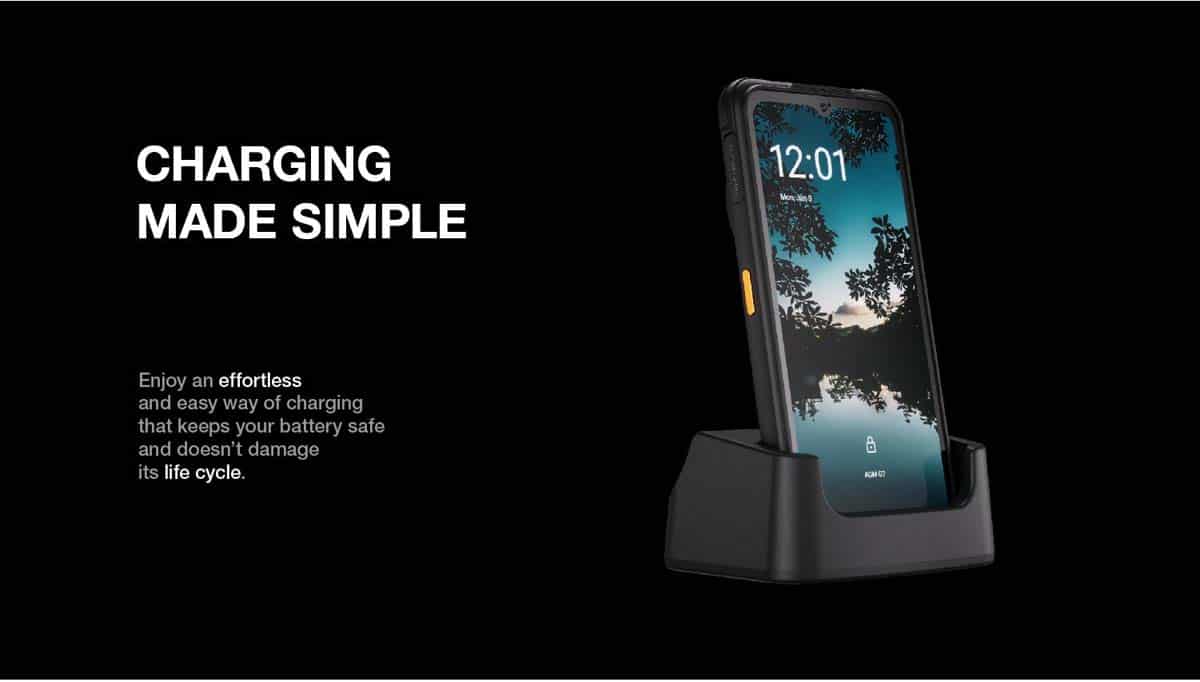

Charging dock: Support, contact form, mutually exclusive with Type-C charging
Touch key category: virtual
Front and rear camera working status indicators: Support
Battery
capacity: 7000mAh
installation method: built-in
Fast Charging: Support, 18W
Dock Charging: Support
Durability requirements
Operating temperature: -20°C~60°C
Degree of protection: IP68/IP69K/810H
Standard Frequency Band
2/3/4G
Band
GSM: 850,900,1800,1900 CDMA:BC0, BC1, BC10 WCDMA: B1,B2,B4,B5,B6,B8,B19 LTE-FDD: B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B18,B19,B20,B25,B26,B28AB,B66、B71 LTE-TDD: B34 B38 B39 B40 B41
CA
MIMO: 4*4
LTE Cat/Max Speed
DL：cat18 MAX 1.2Gbps（DL 256QAM） UL：cat18 MAX 200Mbps（UL 256QAM）
5G
Band: n1, n2, n3, n5, n7, n8, n28, n41, n66,n71, n77, n78,n79
NSA: Support, Option 3x/3a
SA: Support, Option 2
MIMO: n1/n2/n3/n7/n66/n77/n78/n79 Four Downstream, Single Upstream, n41 Four Downstream, Dual Upstream
SRS
SA SRS: n41:2T4R，n77/n78/n79：1T4R NSA SRS：n41/n77/n78/n79 1T4R
HPUE: n41/n78/N79： Total Power 26dBm
EN_DC
CA
Sim mode
Dual Sim Requirements: Support
Sim Switch: Support
Voice
WCDMA WB: Support
VOLTE: Support
VONR: Support
