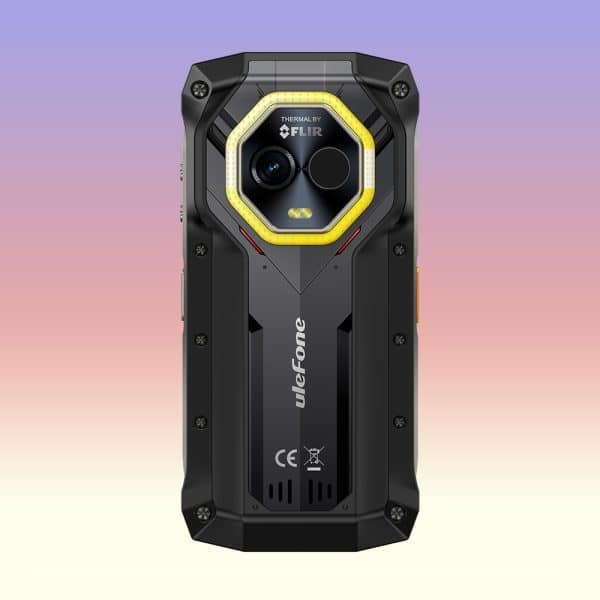

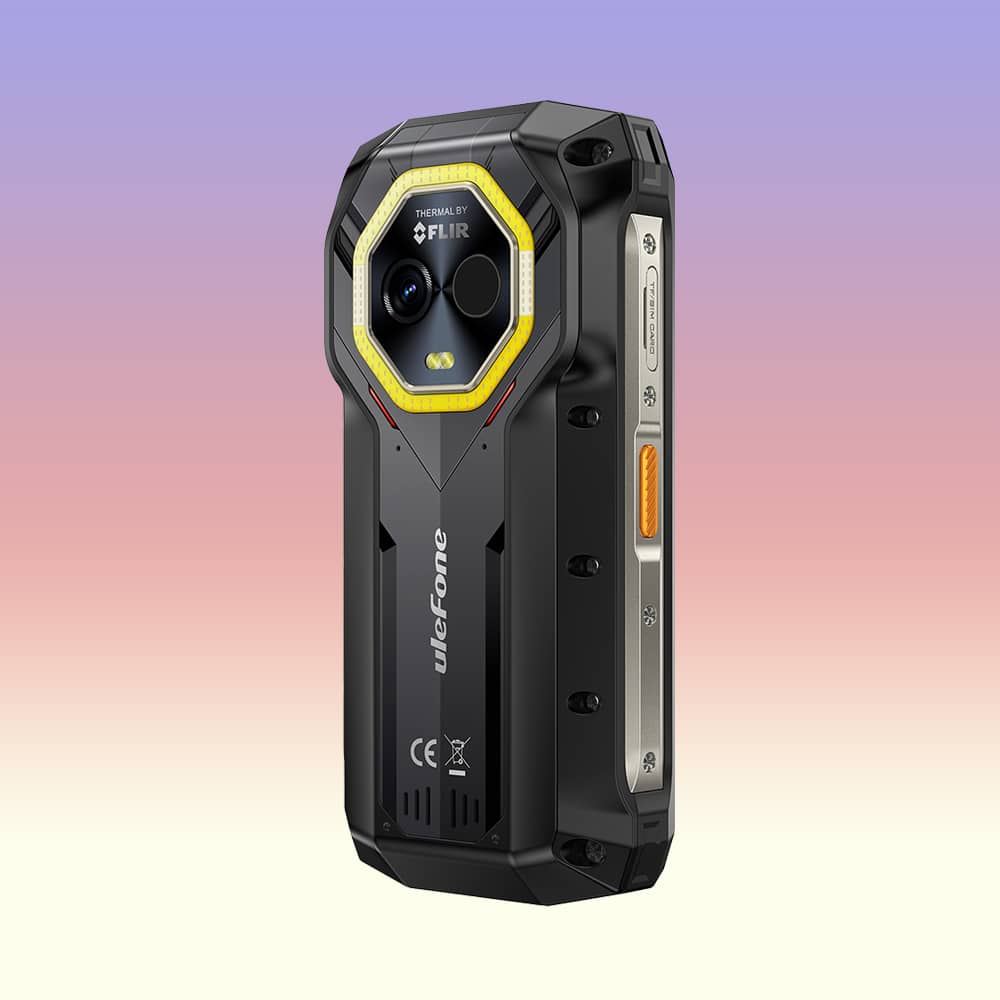

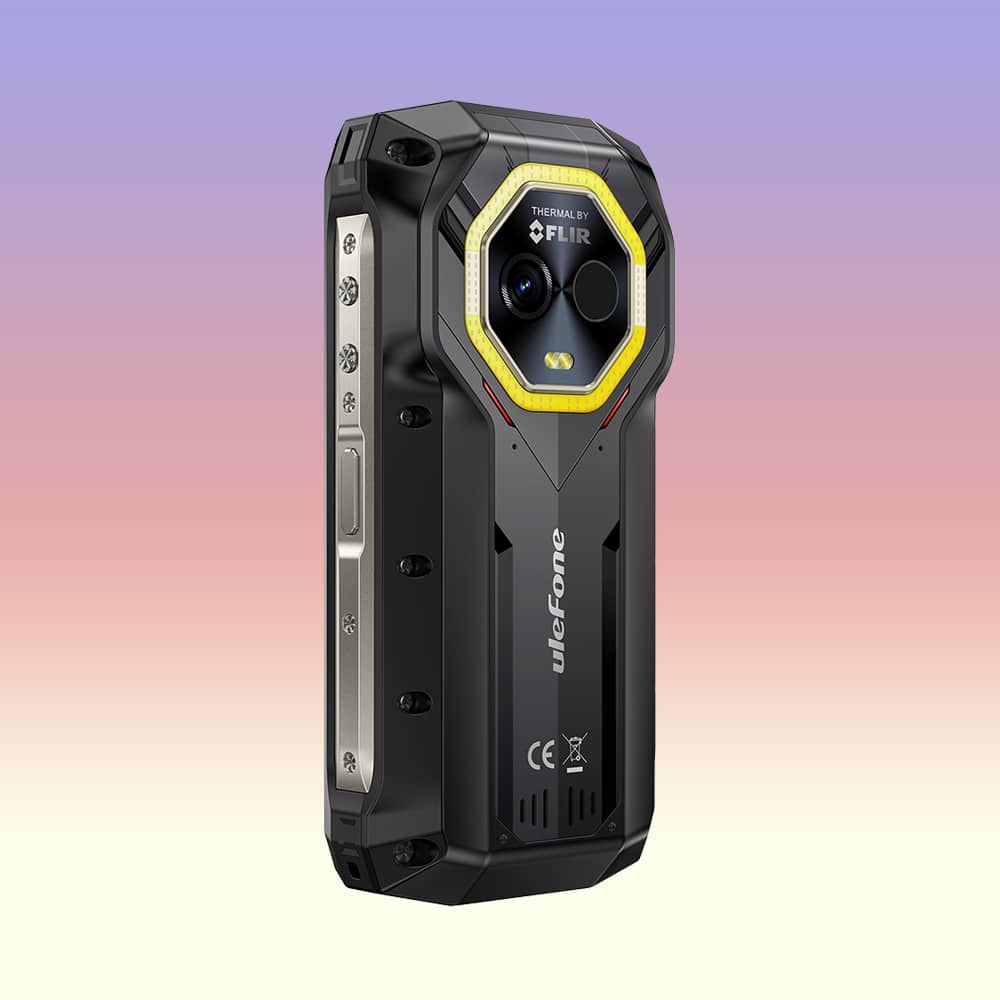

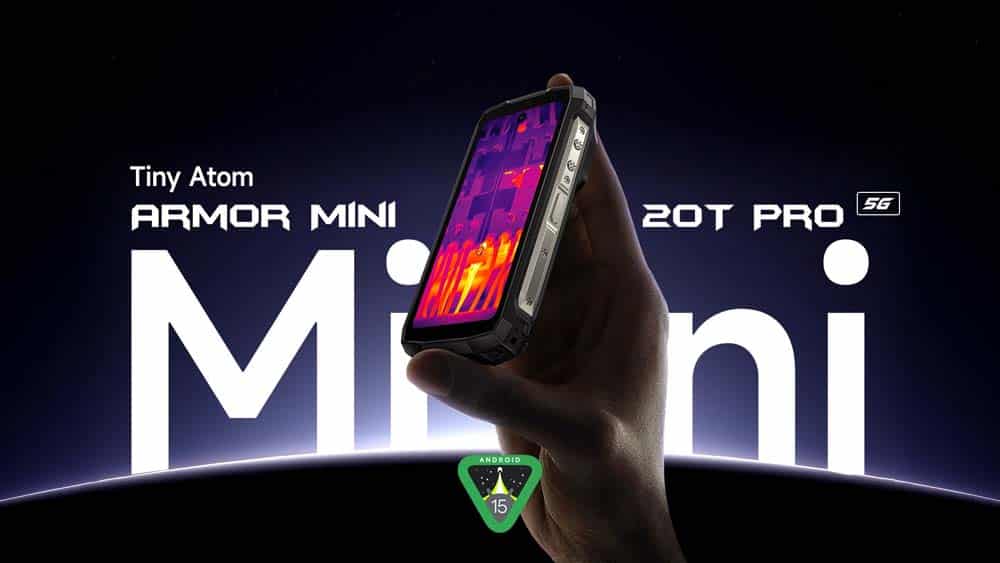

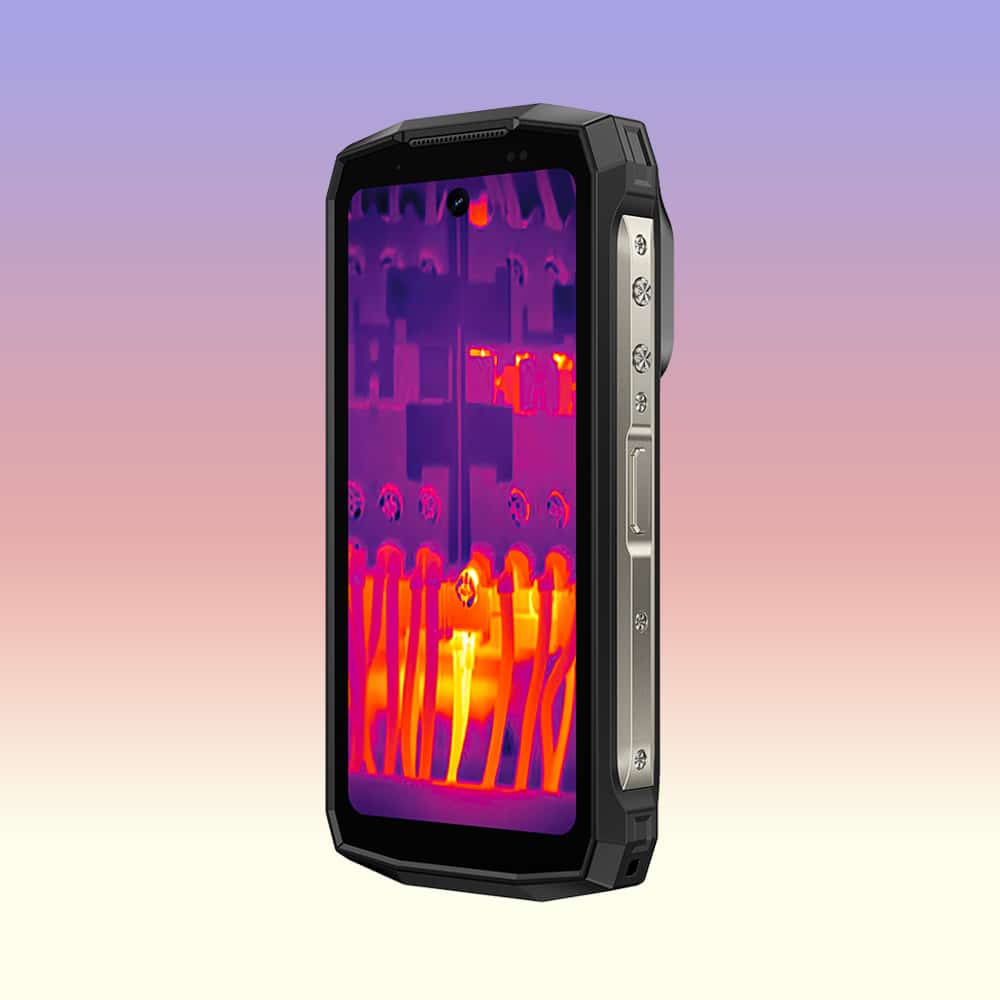

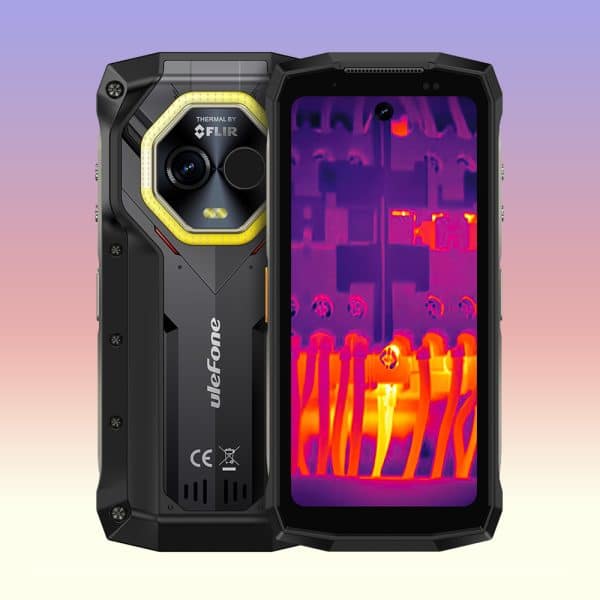

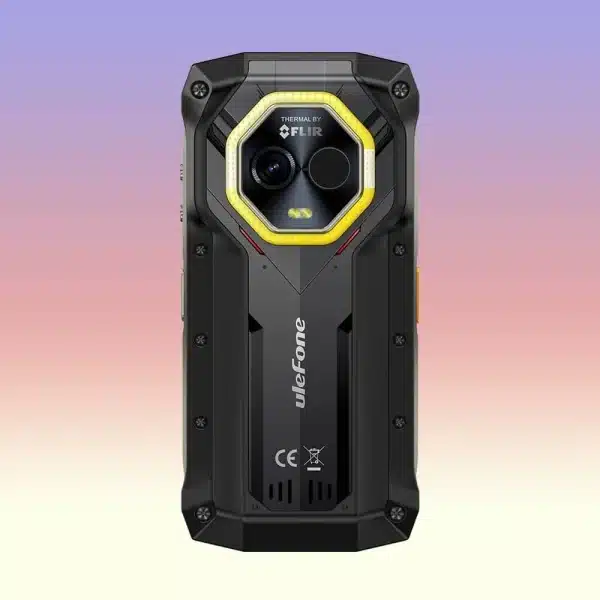

Ulefone Armor Mini 20T Pro Thermal Imaging Rugged Smartphone 5G Android 15 Phone with FLIR Thermal Camera, Dimensity 6300, 6200mAh Battery, IP68/IP69K Waterproof Design
0
days
00
hr
00
min
00
sc
Original price was: $999.99.$779.99Current price is: $779.99.
Why You’ll Love It?

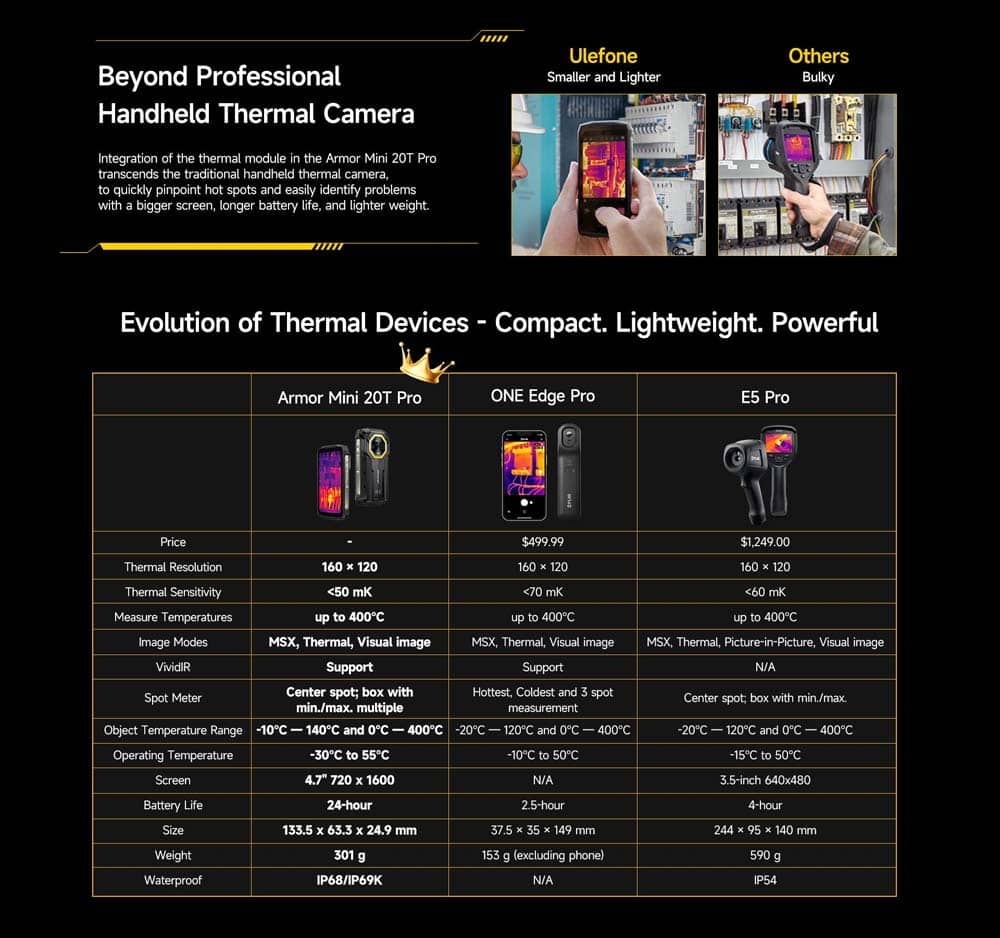

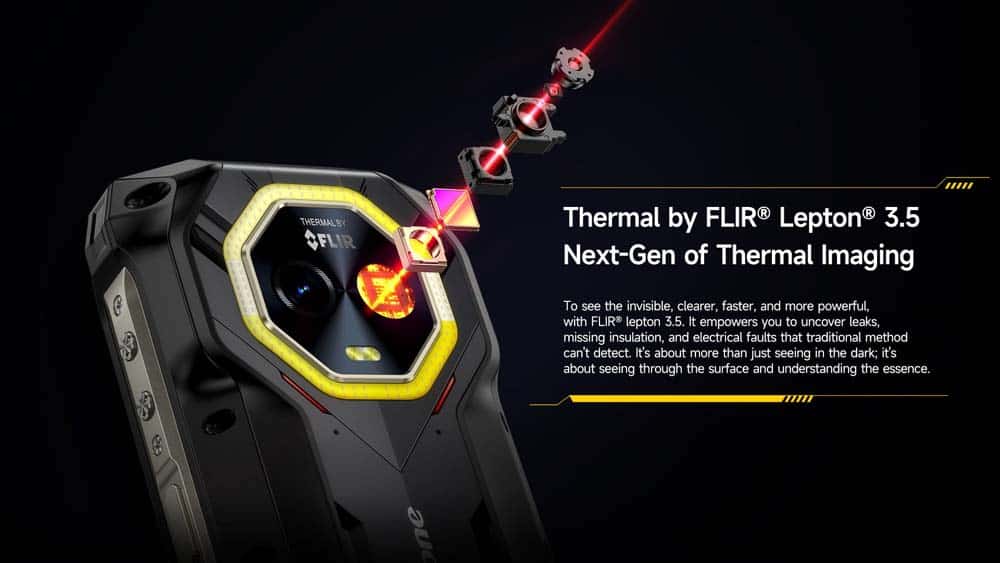

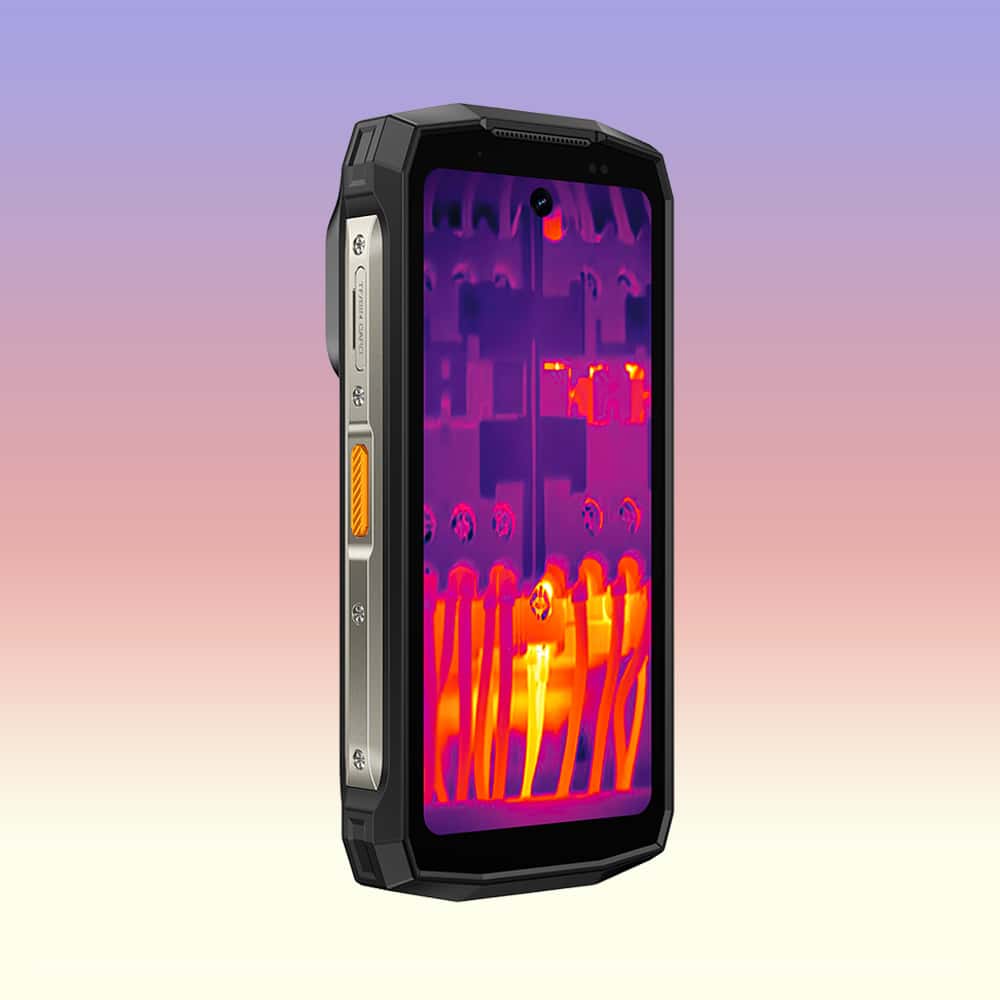

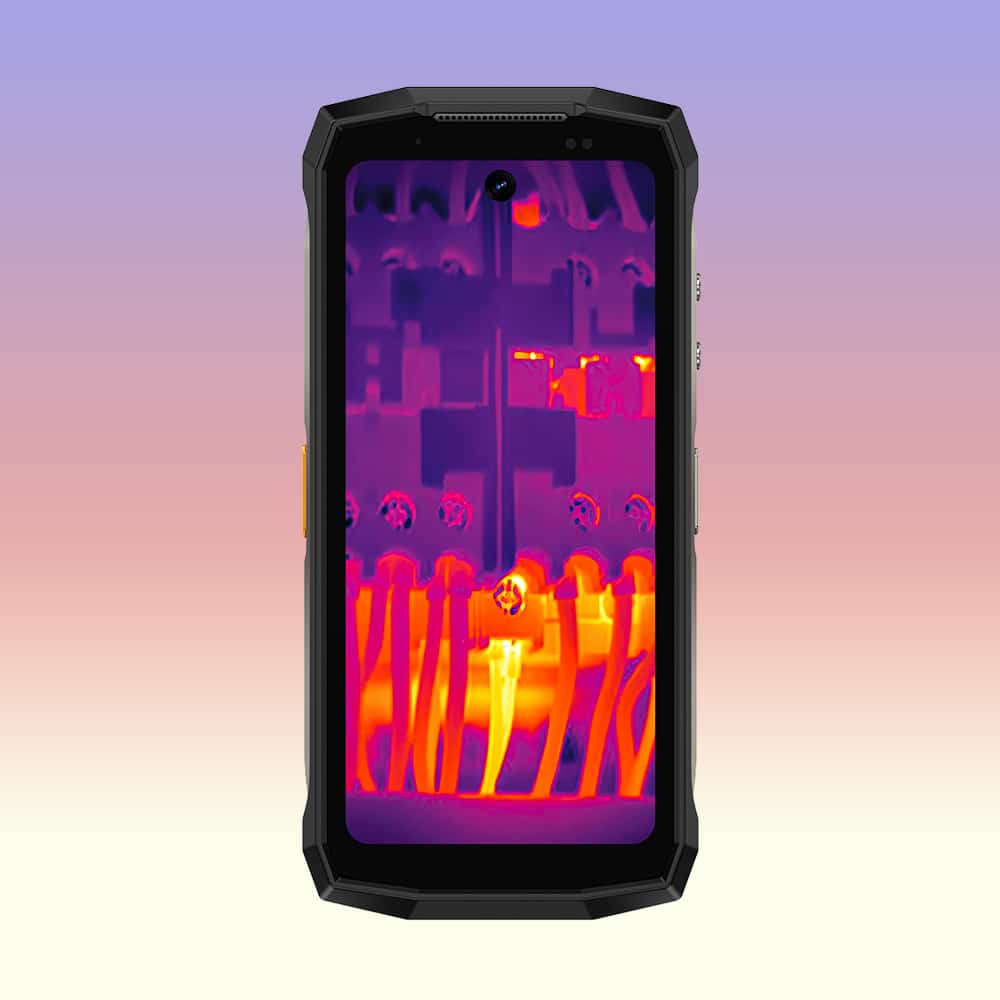

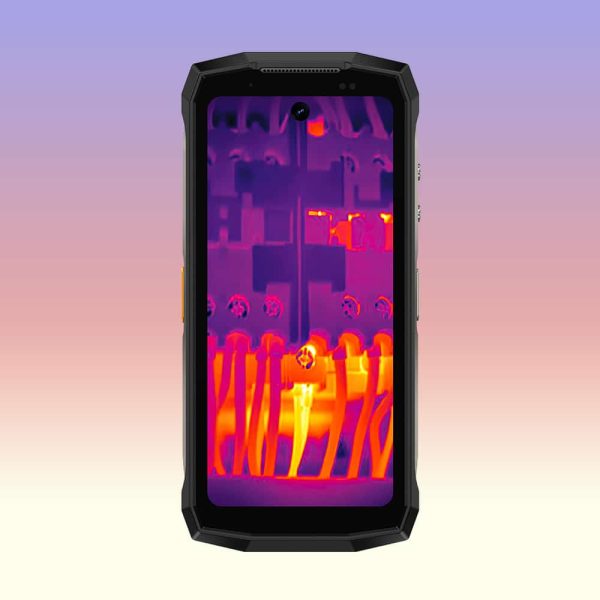

[FLIR Thermal Imaging for Heat Detection] Equipped with integrated FLIR thermal imaging, the Armor Mini 20T Pro reveals invisible heat signatures with 160×120 thermal resolution, 12μm pixel pitch, <50mK sensitivity, and a -10°C to 450°C temperature measurement range for inspection, outdoor exploration, and heat detection.

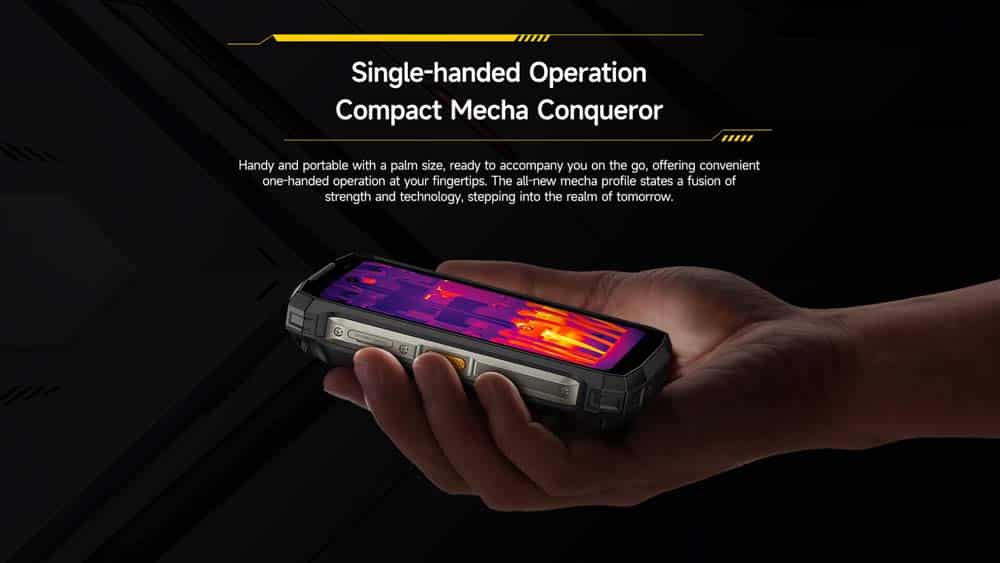

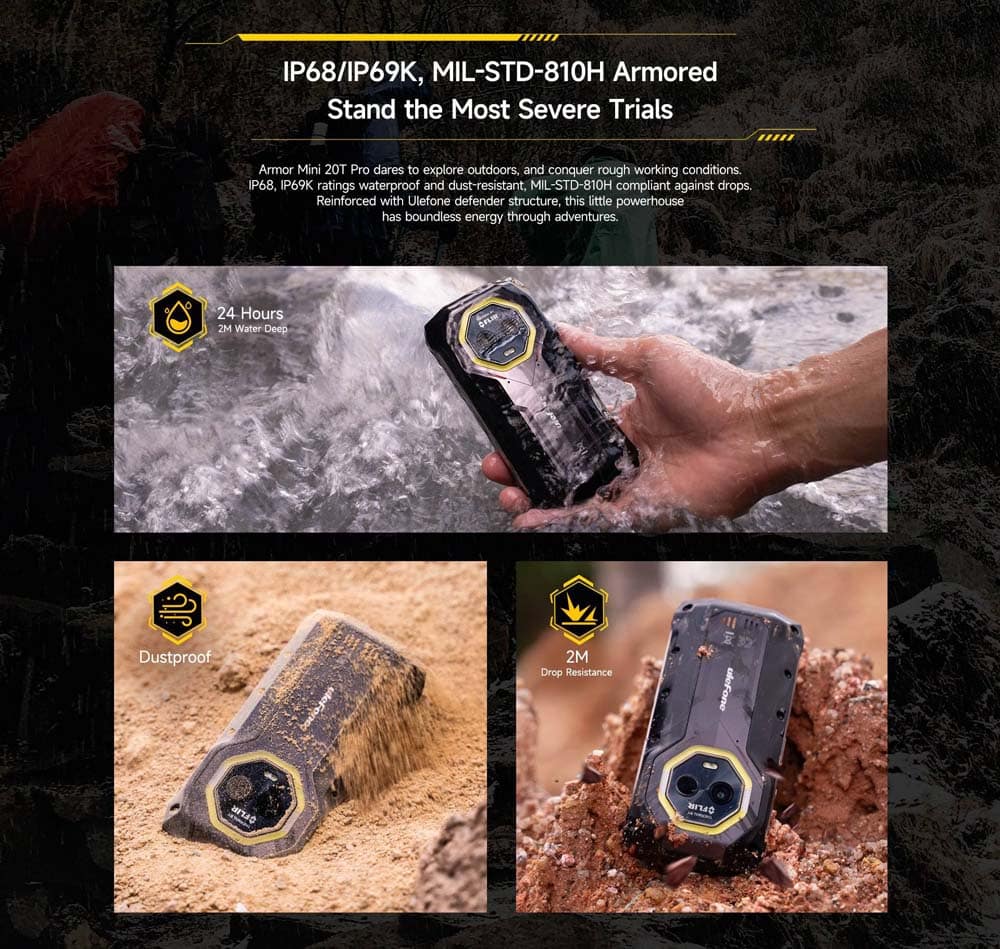

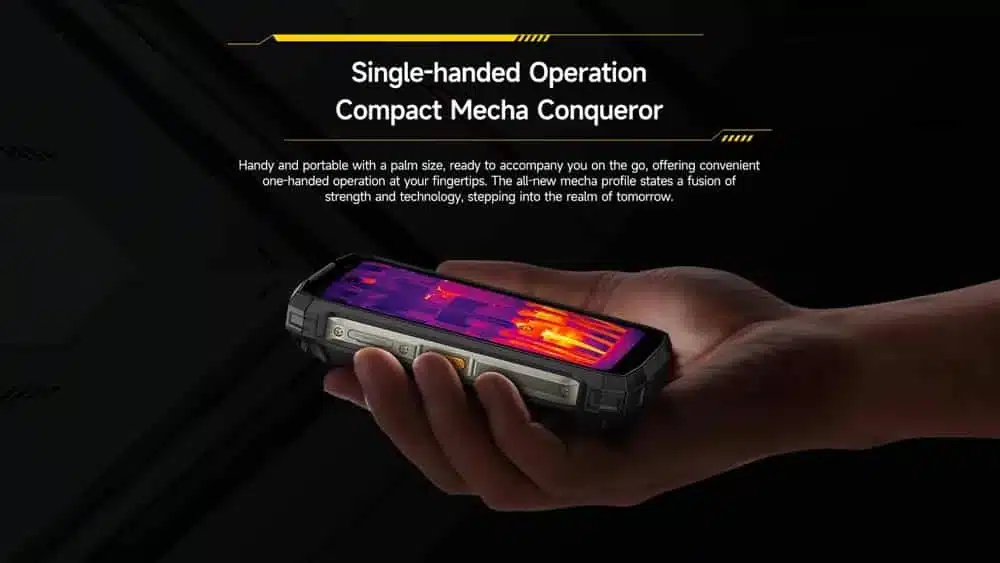

[Compact 4.7″ Rugged Design with Premium Protection] Built in a compact 301g body, the Armor Mini 20T Pro combines portability with durability. With IP68, IP69K, and MIL-STD-810H certification, it is designed to withstand water, dust, and demanding outdoor environments.

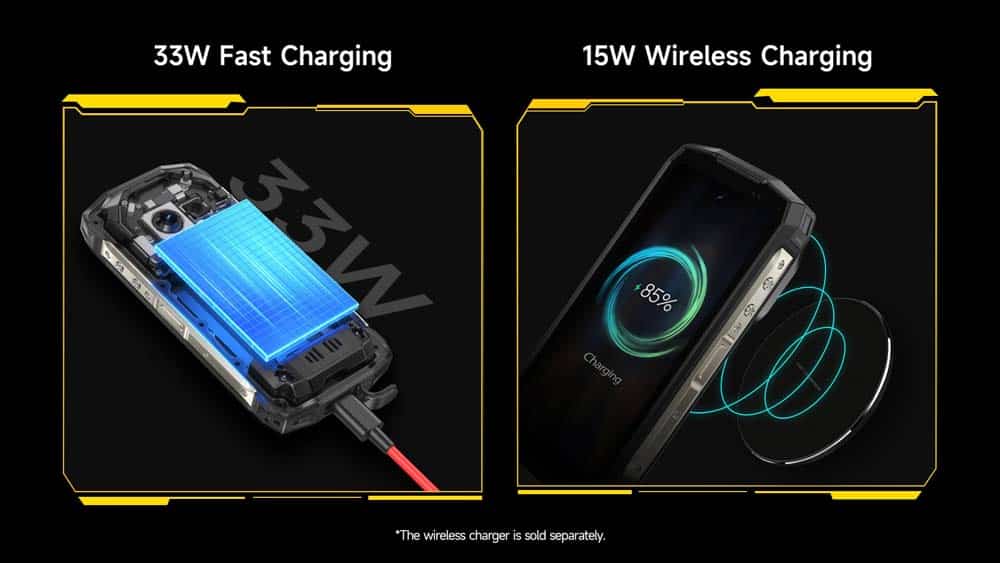

[6200mAh Battery with 33W Fast Charging] The 6200mAh battery provides reliable power for daily tasks and outdoor use, while supporting 33W fast charging, 15W wireless charging, and wireless reverse charging for flexible power options.
[Dimensity 6300 5G Performance with 8GB+256GB Storage] Powered by the MediaTek Dimensity 6300 processor, 8GB RAM, and 256GB UFS 2.2 storage, the Armor Mini 20T Pro delivers smooth performance with 5G connectivity and supports up to 2TB microSD expansion.

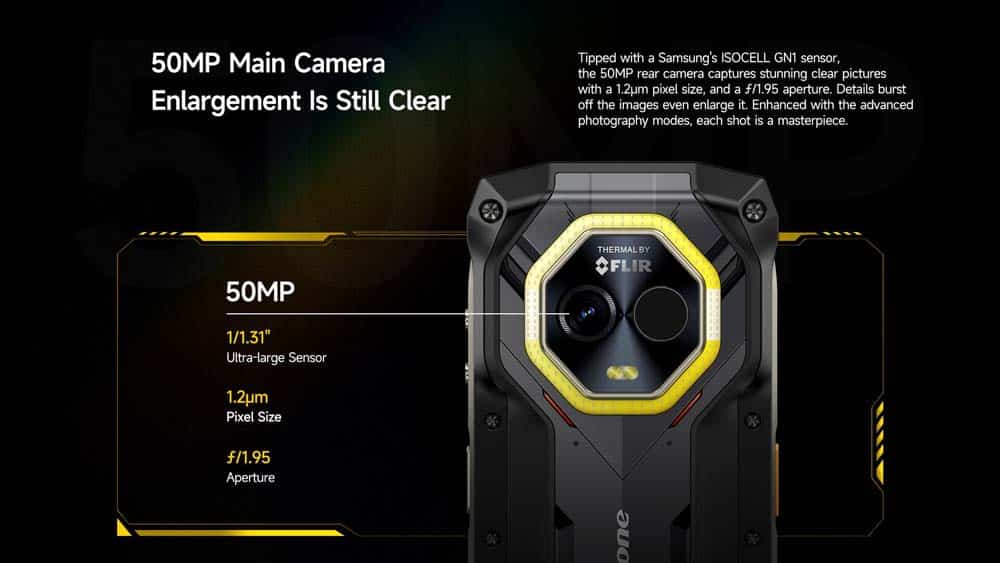

[50MP Samsung Camera & 2K Video Recording] Capture detailed photos and videos with the 50MP rear camera featuring Samsung GN1 sensor, large 1/1.31″ sensor size, and 2K video recording. The 32MP front camera also supports high-quality selfies and video calls.
Freeshipping On All Orders
We provide worldwide freeshipping for every order,every day,no moq required.
No import charges for all items and no extra charges upon delivery
Official Authorized Distributor
RUGGEDZONE.COM is an authorized distributor on all brands we sell. As an authorized distributor we have extensive knowledge and insight about the products and can provide you with the necessary education for using the products. Also as an authorized dealer this will give you a peace of mind knowing that you have a full warranty on all the products that you buy from us.
Two Years Warranty
We double all 2-year manufacturer warranty’s and take care of everything for you. No waiting on hold with the manufacturer.
2 years warranty, 100% authentic guaranteed
Free returns within 30 days of purchase
We hope you'll love your products from the RUGGEDZONE.COM Store, but if something isn't quite right, you can send it back with our flexible 30-day returns policy as long as it's in good working condition. Learn More >
Price adjustment within 30 days of payment
Items purchased from RUGGEDZONE.COM are eligible for our price adjustment policy. We will provide the price difference in the currency that the order was paid in if the selling price of the item purchased was reduced within 30 days of payment in the same country or region. The shipment of your order will not be affected by applying for a price adjustment before you receive your item(s).
30-day Easy Free Returns Policy, 30-Day Price Adjustments
Safe Payment Options
Secure Privacy
Protecting your privacy is important to us! Please be assured that your information will be kept secured and uncompromised. We do not sell your personal information for money and will only use your information in accordance with our privacy and cookie policy to provide and improve our services to you. Learn More >
Safe Payment Options,Purchase protection
You May Also Like
Color: Mecha Black
Size and Weight
Thermal Imaging
Rugged
Processor
Storage and RAM
*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
Display
Rear Camera
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
Front Camera
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
Underwater Photography
Operating System
Sensors
Multimedia
| Video | MOV/MKV/3GP/MP4 |
| Audio | MID/FLAC/MKA/MP3/M4A AAC/AMR/OGG/MP2 |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
Ports
Card slot
Notification Light
Language support
In the box
Network
In the box
Q & A
Ask a question
Ulefone Armor Mini 20T Pro Thermal Imaging Rugged Smartphone 5G Android 15 Phone with FLIR Thermal Camera, Dimensity 6300, 6200mAh Battery, IP68/IP69K Waterproof Design
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
| Detail Specs | |
|---|---|
| MODEL: | Ulefone Armor Mini 20T Pro |
| Color | Mecha Black |

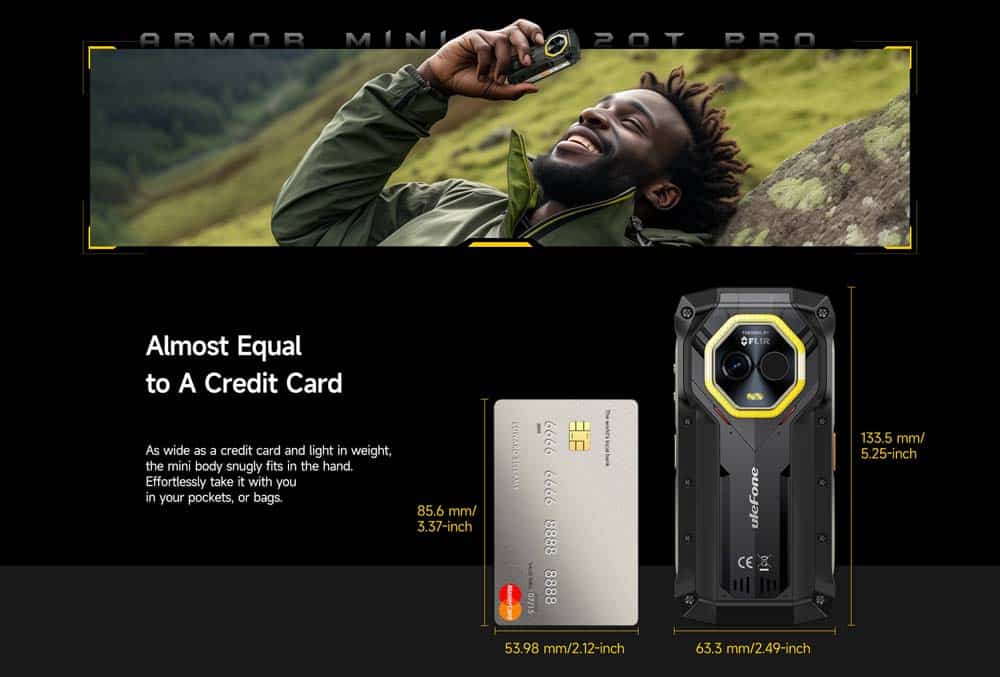

| Height | 133.5 mm |
| Width | 63.3 mm |
| Depth | 24.9 mm |
| Weight | 301 g |
| Thermal Imaging | Integrated FLIR Thermal Imaging |
| Thermal Resolution | 160 × 120 |
| Thermal Frame Rate | 8.7Hz |
| Pixel Pitch | 12μm |
| Thermal Sensitivity | <50mK |
| Measurable Temperature Range | -10°C to 450°C |
| Thermal Accuracy | ±3°C |

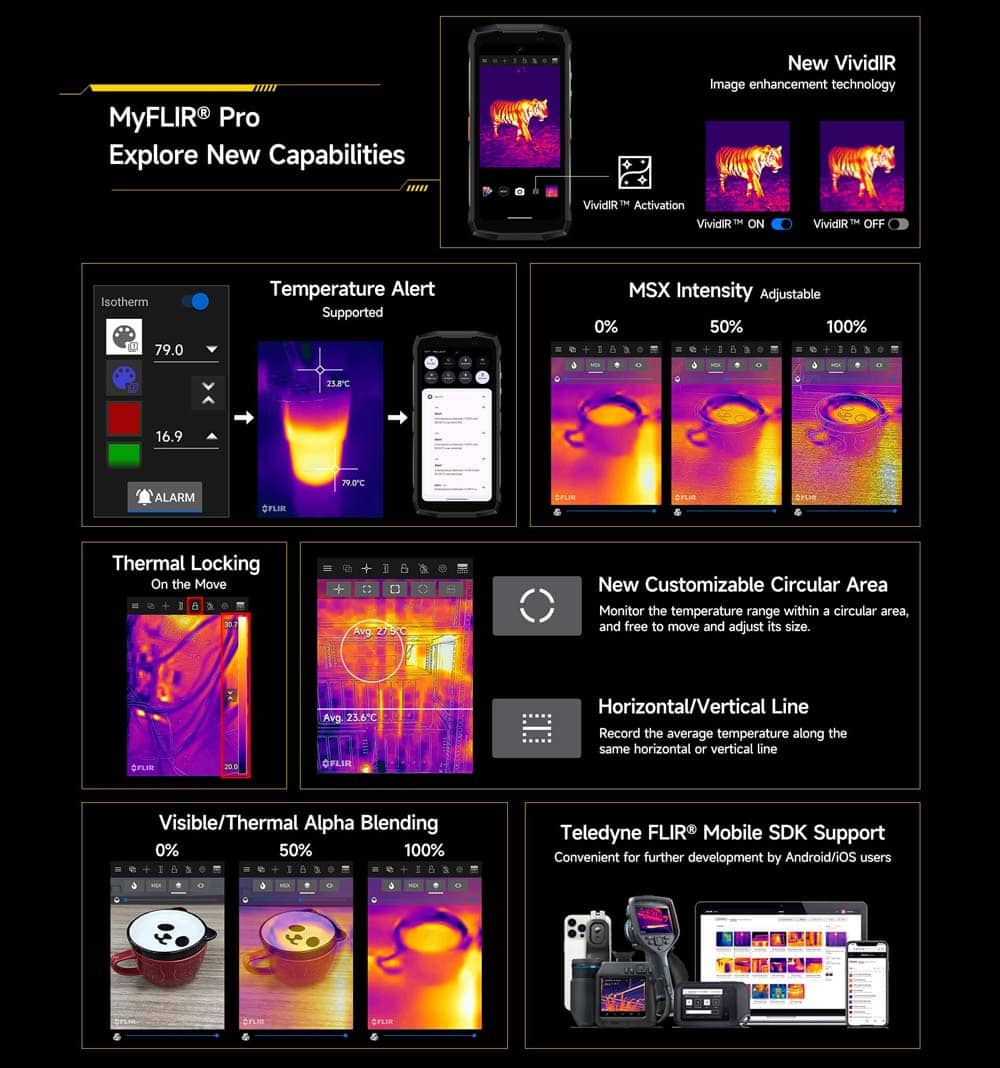

| Thermal App | Pre-installed MyFLIR Pro App |

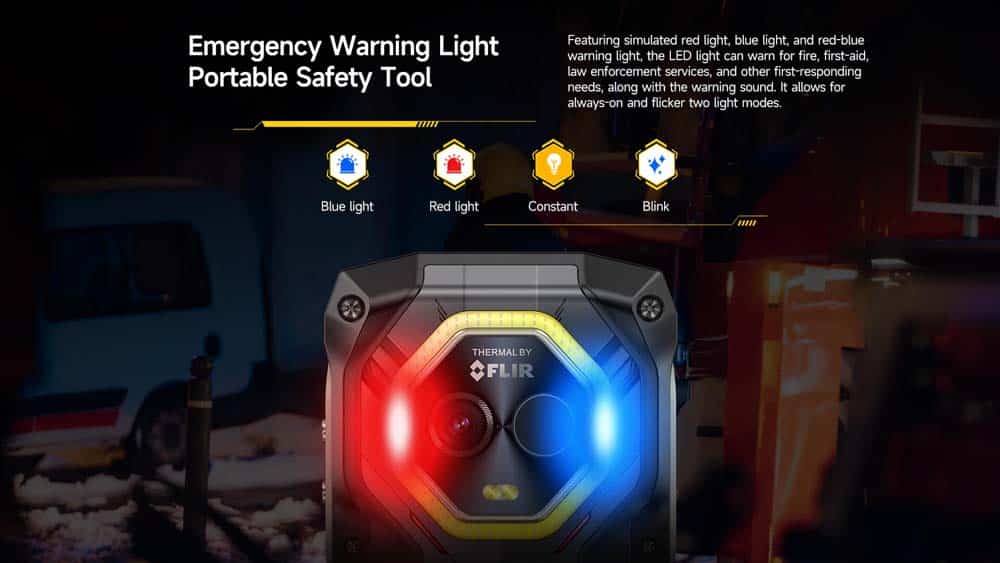

| Warning Light | Red Light / Blue Light / Red-Blue Light |
| Warning Sound | Fire, Ambulance, Police and Other Emergency Sounds |
| Lighting Modes | Constant Light / Blink |
| Flashlight Brightness | 500 Lumens Max |
| LED Quantity | 130 LEDs |
| Flashlight Power | 5W Max |
| Flashlight Waterproof Rating | IPX8 |

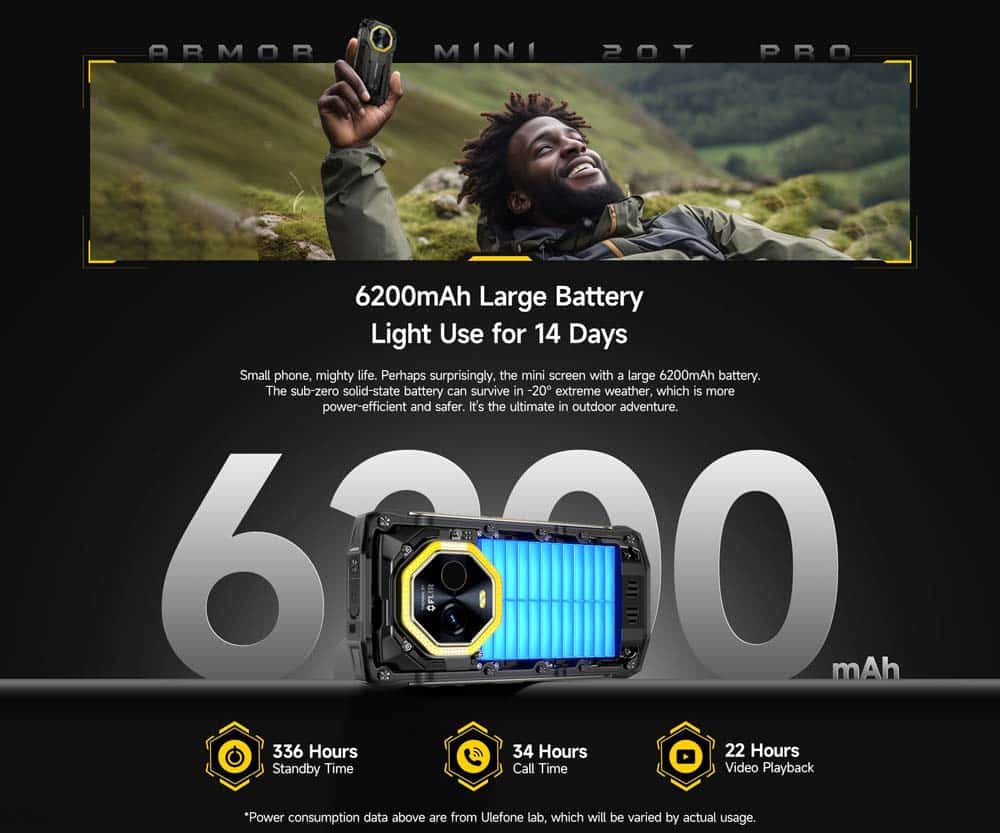

| Battery Capacity | 6200mAh |
| Battery Type | Built-in Lithium-ion Polymer Battery |
| Charging Port | USB Type-C |
| Wired Charging | 33W Fast Charging |
| Wireless Charging | 15W Wireless Charging |
| Reverse Wireless Charging | Supported |
| Standby Time | Up to 336 Hours |
| Talk Time | Up to 34 Hours |
| Rugged Rating | IP68 / IP69K |
| IP68 Protection | Up to 2.0m for 30 Minutes |
| Military Standard | MIL-STD-810H |
| Processor | MediaTek Dimensity 6300 |
| CPU | 2 × Cortex-A76 + 6 × Cortex-A55 |
| CPU Frequency | Up to 2.4GHz |
| Process Technology | 6nm |
| GPU | Arm Mali-G57 MC2 |
| RAM | 8GB LPDDR4X |
| Storage | 256GB UFS 2.2 |
| Expandable Storage | microSD Up to 2TB |

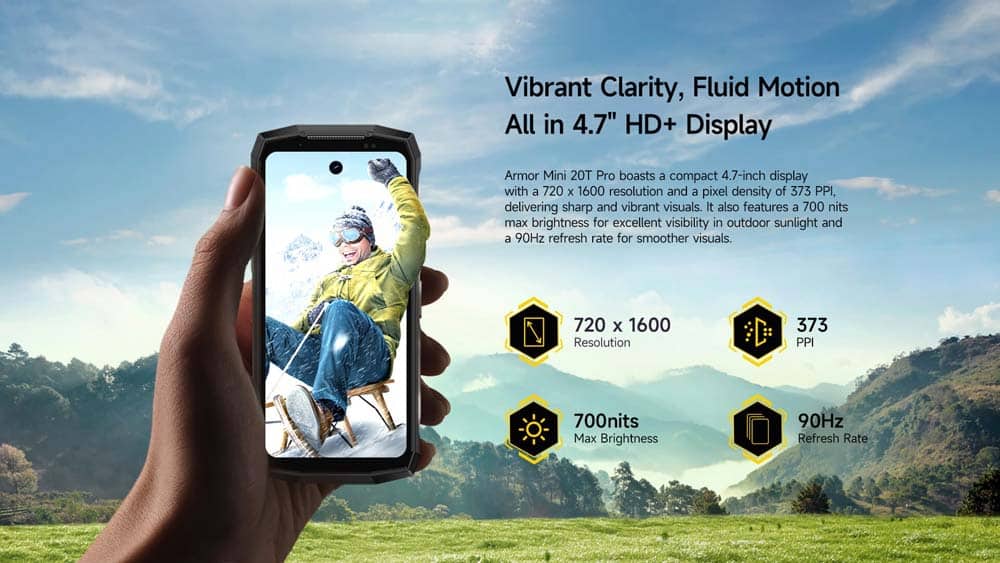

| Display Size | 4.7-inch |
| Display Type | IPS LCD Multi-Touch Display |
| Display Resolution | 720 × 1600 HD+ |
| Pixel Density | 373 PPI |
| Refresh Rate | 90Hz |
| Display Protection | Corning Gorilla Glass Victus |
| Rear Camera | 50MP Main Camera |
| Rear Camera Sensor | Samsung GN1 |
| Rear Camera Lens | 1/1.31-inch Ultra Large Sensor, 7P Lens |
| Rear Camera Aperture | f/1.95 |
| Rear Camera Video | Up to 2K @ 30fps |
| Front Camera | 32MP Selfie Camera |
| Front Camera Sensor | Samsung GD1 |
| Front Camera Aperture | f/2.45 |
| Front Camera Video | Up to 2K @ 30fps |
| Underwater Photography | Supported |
| Underwater Operation | Supports Photo, Video and Mode Switching |
| Fingerprint Unlock | Supported |
| Face Unlock | Supported |
| Fingerprint Sensor | Side-Mounted |
| SIM Card | Dual Nano SIM |
| Network | 5G / 4G / 3G / 2G |
| 5G Bands | N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
| 4G LTE-FDD Bands | B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71 |
| 4G LTE-TDD Bands | B32/34/38/39/40/41 |
| 3G Bands | WCDMA B1/2/4/5/6/8/19 |
| 2G Bands | GSM B2/3/5/8, CDMA BC0/BC1/BC10 |
| VoLTE | Supported |
| Wi-Fi | 802.11 a/ac/b/g/n, 2.4GHz/5GHz |
| Bluetooth | Bluetooth 5.2 |
| Navigation | GPS / GLONASS / Galileo / BeiDou / QZSS |
| Digital Compass | Supported |
| NFC | Supported |
| Google Pay | Supported |
| Operating System | Android 15 |
| Android System | Pure Android System, No Ads |
| Sensors | Thermal Sensor, Infrared Sensor, NFC, Gyroscope, Gravity Sensor, Geomagnetic Sensor, Air Pressure Sensor, Pedometer and More |
| USB Port | USB Type-C |
| Headphone Jack | 3.5mm |
| Card Slot | Nano SIM + Nano SIM / microSD |
| Notification Light | Tri-color Light |
| Factory Warranty | 2 Years |
